The Holy Mosque in Mecca is the most important and largest Islamic mosque in the world. An additional floor has been built in the interior around the main sanctuary of the Kaaba. The project name is “Mataf Extension”.
It is a reinforced concrete structure with a span length of 49.21 ft and dimensions of the main beams of H/W = 7.22 ft/11.81 ft with a span length of 75.46 ft.
Structural Design
Ing.-Büro Mauss
Düsseldorf, Germany
www.ibmauss.de
Structure
General Contractor
Saudi Binladin Group (SBG)
Jeddah, Saudi Arabia
www.sbg.com.sa
Investor
GHI Formwork LLC
Dubai, United Arab Emirates
ghiformwork.com

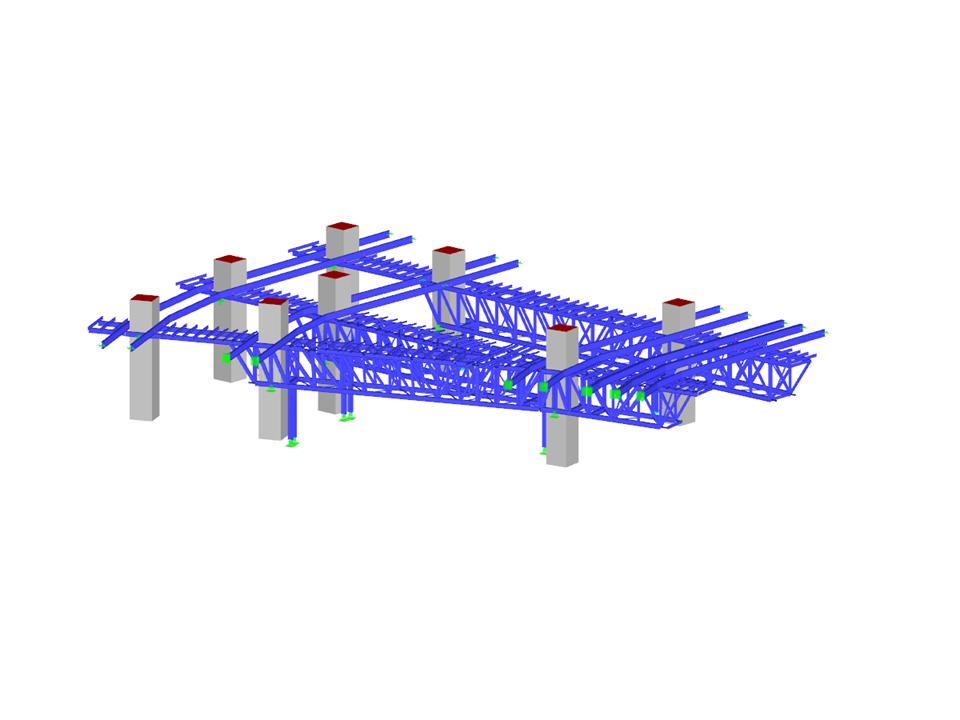

3D model (© GHI)
It is a reinforced concrete structure with a span length of 49.21 ft and dimensions of the main beams of H/W = 7.22 ft/11.81 ft with a span length of 75.46 ft.
Structural Design
Ing.-Büro Mauss
Düsseldorf, Germany
www.ibmauss.de
Structure
General Contractor
Saudi Binladin Group (SBG)
Jeddah, Saudi Arabia
www.sbg.com.sa
Investor
GHI Formwork LLC
Dubai, United Arab Emirates
ghiformwork.com
3D model (© GHI)
Steel Support Structure
No Download Possible
Customer Project / View Only
| Number of Nodes | 1193 |
| Number of Lines | 1451 |
| Number of Members | 1444 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 6 |
| Number of Result Combinations | 1 |
| Total Weight | 202.177 tons |
| Dimensions (Metric) | 58.785 x 44.301 x 12.048 m |
| Dimensions (Imperial) | 192.86 x 145.34 x 39.53 feet |
| Program Version | 5.03.00 |
