A remarkable free-form roof structure was built at the Xujiahui Commercial Center in Shanghai, China, and inaugurated in June 2017.
It serves as a skylight in the indoor area of the shopping center, and as a canopy in the outdoor area.
Novum Structures LLC
www.novumstructures.com

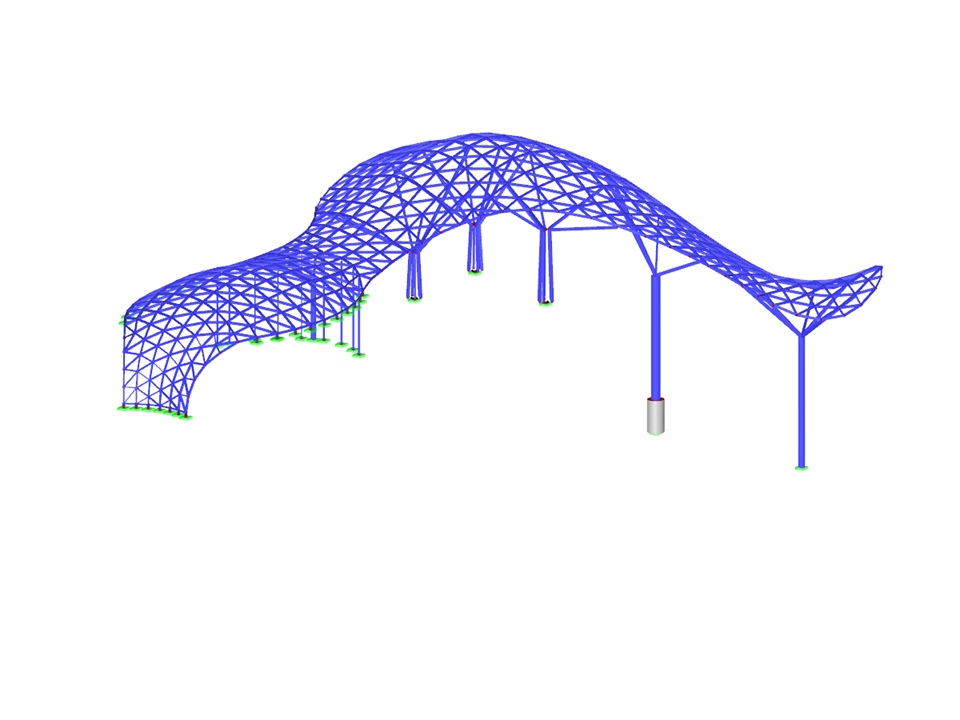

3D model (© Novum Structures LLC)
Free-Form Roof Structure
No Download Possible
Customer Project / View Only
| Number of Nodes | 495 |
| Number of Members | 1202 |
| Number of Load Cases | 20 |
| Number of Load Combinations | 168 |
| Number of Result Combinations | 3 |
| Total Weight | 82.024 tons |
| Dimensions (Metric) | 40.780 x 57.253 x 23.412 m |
| Dimensions (Imperial) | 133.79 x 187.84 x 76.81 feet |
| Program Version | 7.04.98 |
