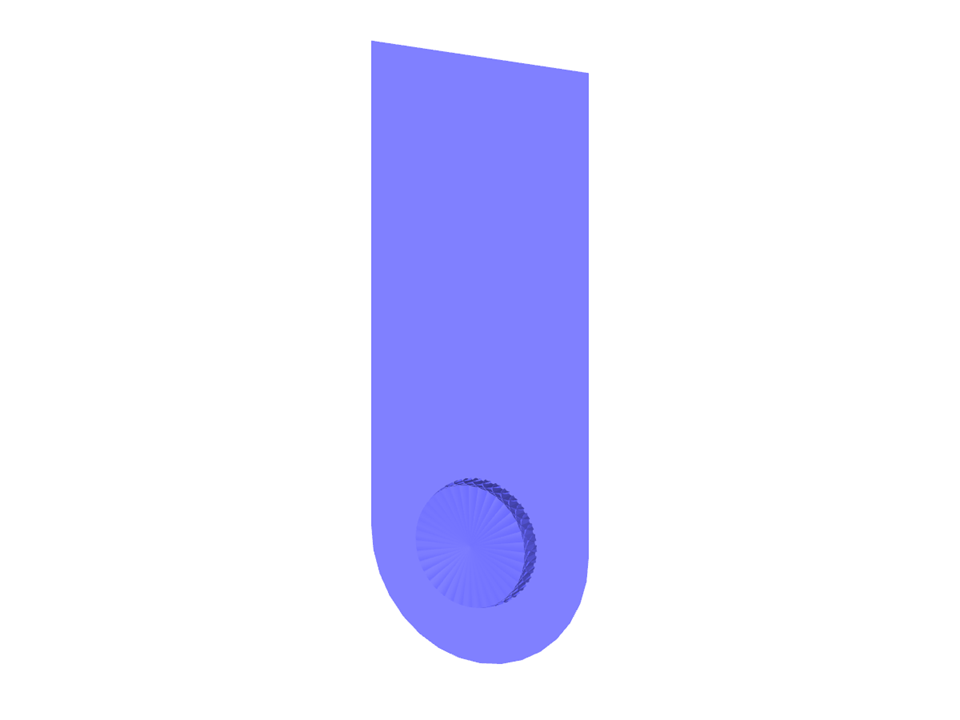

The model represents a high-quality steel plate, made of robust, predominantly low-carbon steel. It is ideal for simulating material behavior in complex structures and is based on precise material definition. The accompanying image shows a detailed display of the surface structure and quality, which is a note of careful manufacturing. The technical design supports the engineering design and simulation of structural elements. Solutions and application examples are further supported by the precise model description.
Precise Steel Plate
| Number of Nodes | 42 |
| Number of Lines | 41 |
| Number of Members | 36 |
| Number of Surfaces | 1 |
| Total Weight | 0,001 t |
| Dimensions (Metric) | 0.050 x 0.000 x 0.125 m |
| Dimensions (Imperial) | 0.16 x 0 x 0.41 feet |
| Program Version | 5.01.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
