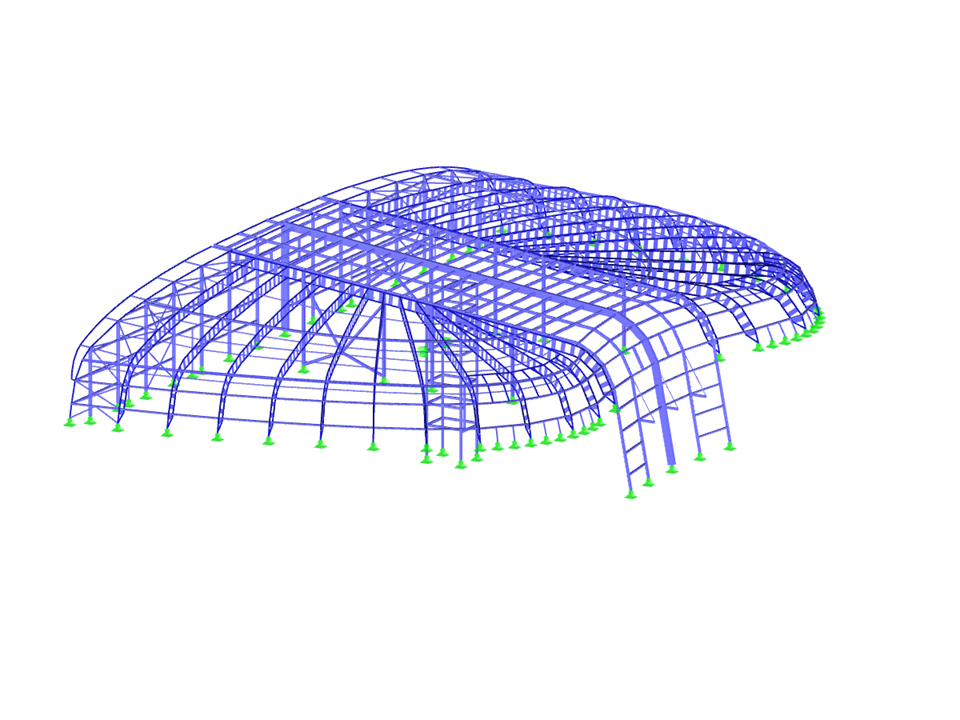

A new building has been built on the site of the former provisional railway station building in Karlovy Vary. The supporting steel structure was designed by KONSTAT s.r.o. The structure consists of curved Vierendeel trusses, which ensure both a modern look and functionality. The entire structure reflects the current requirements for the operation of station buildings, with a focus on safety and aesthetics.
Model Used in
Steel Structure of Building with Vierendeel Ribs
No Download Possible
Customer Project / View Only
| Number of Nodes | 4881 |
| Number of Lines | 4494 |
| Number of Members | 4460 |
| Number of Load Cases | 1 |
| Total Weight | 53,056 t |
| Dimensions (Metric) | 46.894 x 26.374 x 11.909 m |
| Dimensions (Imperial) | 153.85 x 86.53 x 39.07 feet |
| Program Version | 5.24.01 |
