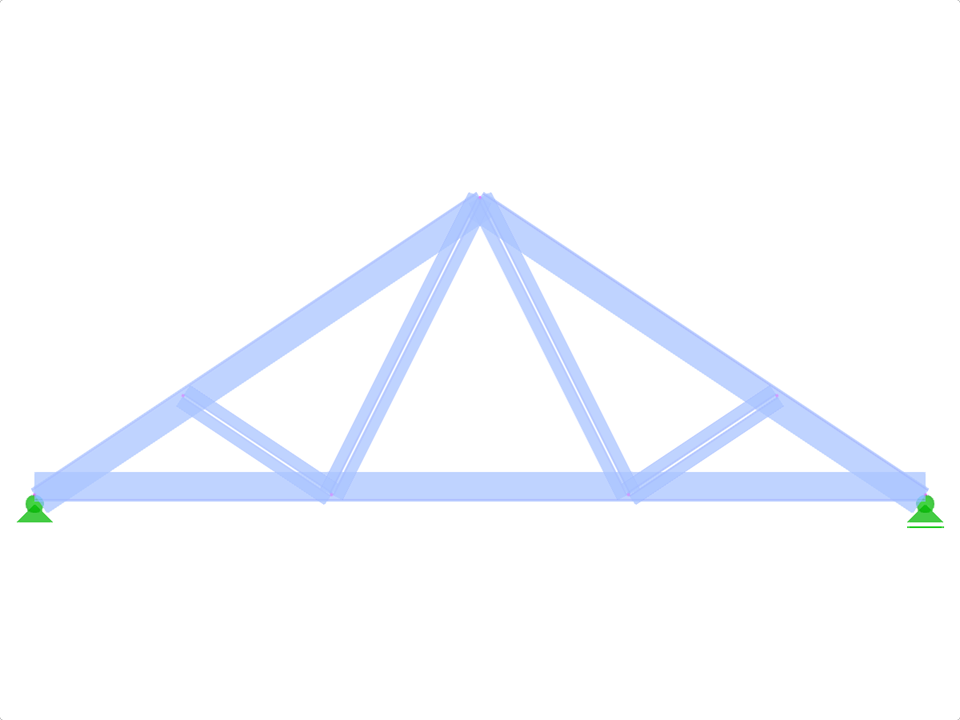

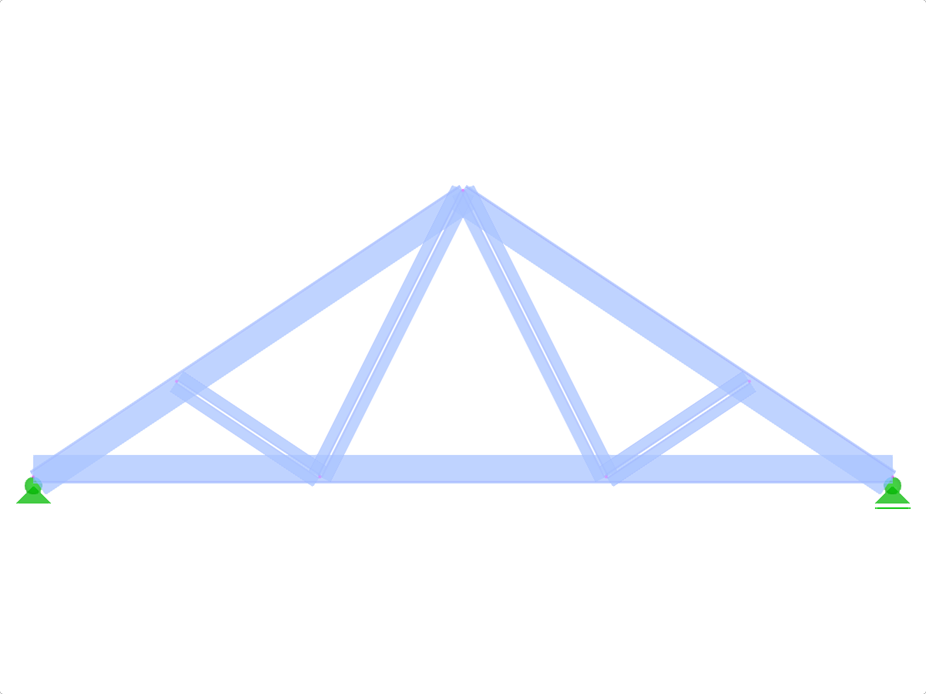

FT400 | Triangular Truss

Block parameters editable dynamically
Number of Nodes 7
Number of Lines 11
Number of Members 11
Number of Surfaces 0
Number of Solids 0
Number of Load Cases 1
Number of Load Combinations 0
Number of Result Combinations 0
Total Weight 0.614 tons
Dimensions (Metric) 6,000 x 2,000 x 0,000 m
Dimensions (Imperial) 19.69 x 6.56 x 0 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
