This model shows how loads can be generated from a multi-layer structure for a reinforced concrete structure. The predefined library contains various floor and roof structures that can be edited and expanded as needed. The model shows precise correlations between floor and roof structures, taking into account complex load definitions. Supplementary graphical displays illustrate how the structural system works. All information is based on engineering standards in the field of structural analysis.
Model Used in

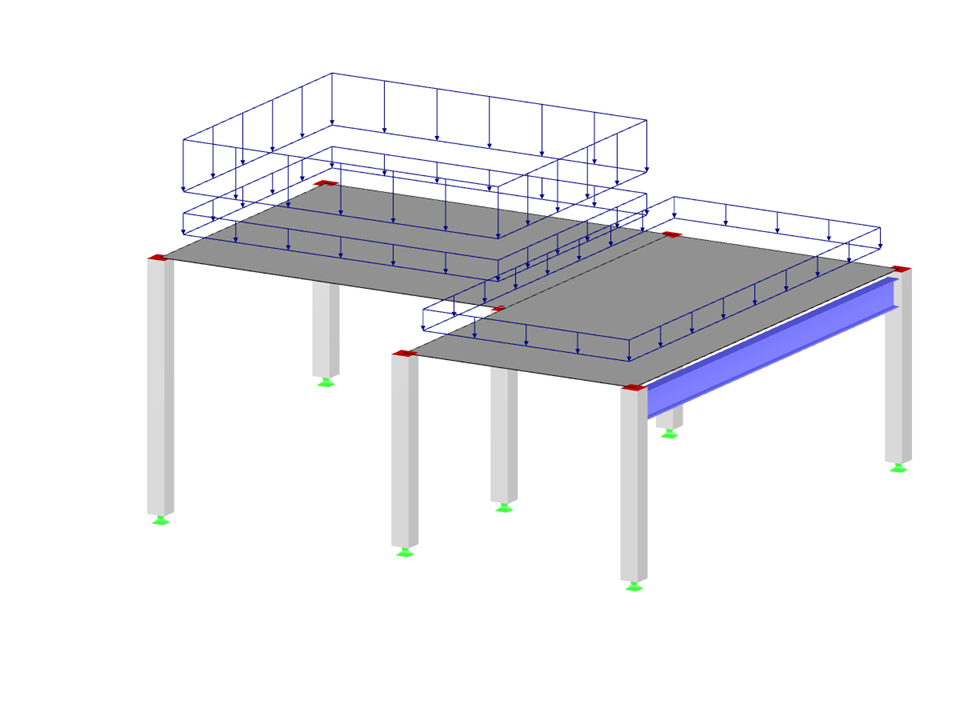

Reinforced Concrete Structure with Multilayer Composition
| Number of Nodes | 14 |
| Number of Lines | 15 |
| Number of Members | 9 |
| Number of Surfaces | 2 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 1 |
| Total Weight | 37,672 t |
| Dimensions (Metric) | 10.157 x 8.157 x 4.079 m |
| Dimensions (Imperial) | 33.32 x 26.76 x 13.38 feet |
| Program Version | 5.25.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
