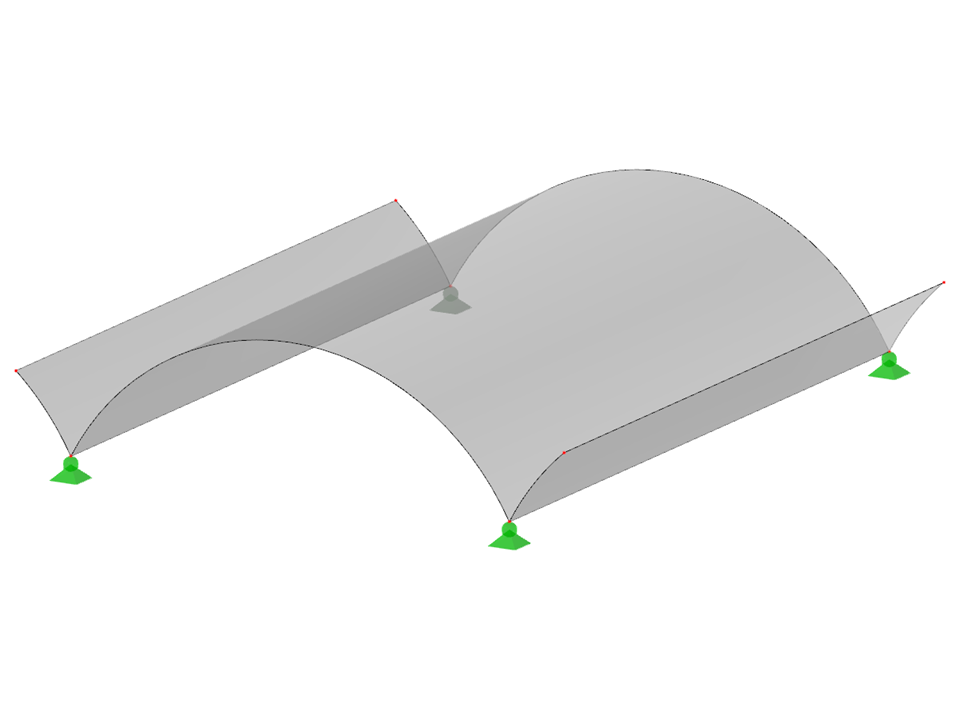

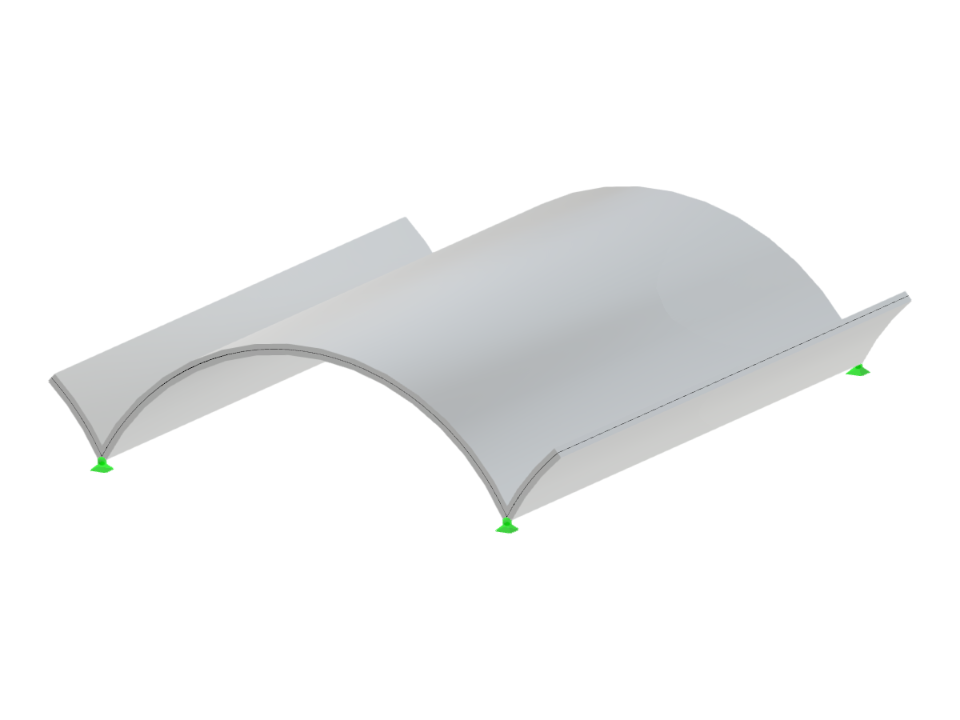

This model presents a barrel vault structure, which is semi-cylindrical in shape, reinforced with radial stiffeners for additional stability. The design highlights the interaction between the vault and its supporting elements, crucial for distributing loads effectively. Such structures are used in applications requiring aesthetic appeal combined with engineering efficiency in roofs or other architectural elements.
Barrel Vault with Radial Stiffener
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 9.781 tons |
| Dimensions (Metric) | 5.000 x 1.200 x 6.000 m |
| Dimensions (Imperial) | 16.4 x 3.94 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
