This model features a tripartite vault, showcasing a complex structural layout utilizing advanced vault geometry. Designed to demonstrate intricate load distributions, it serves as an educational tool for learning about mechanical behavior in vault structures.

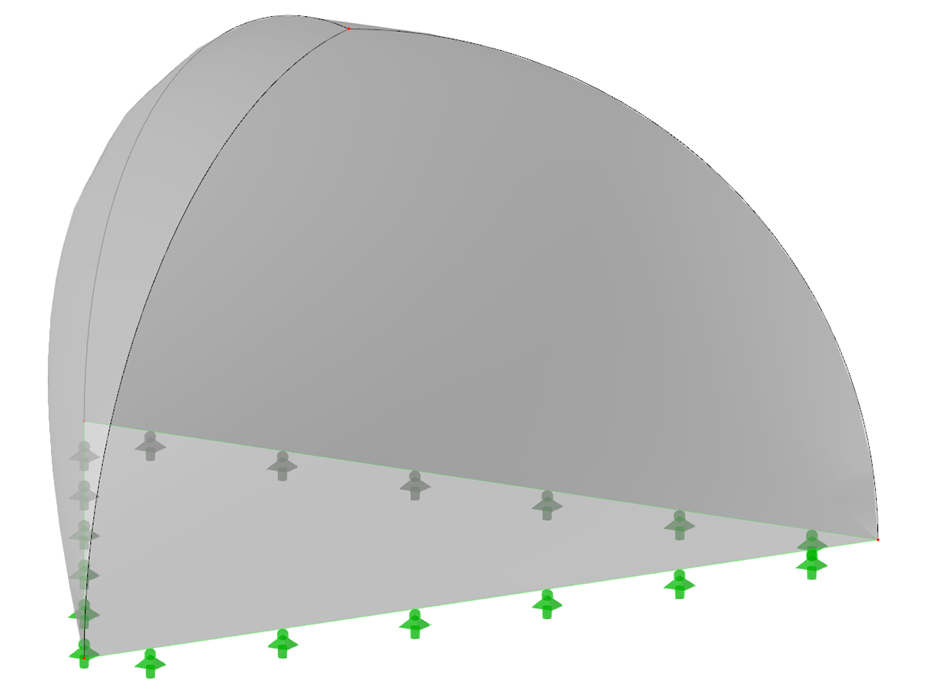

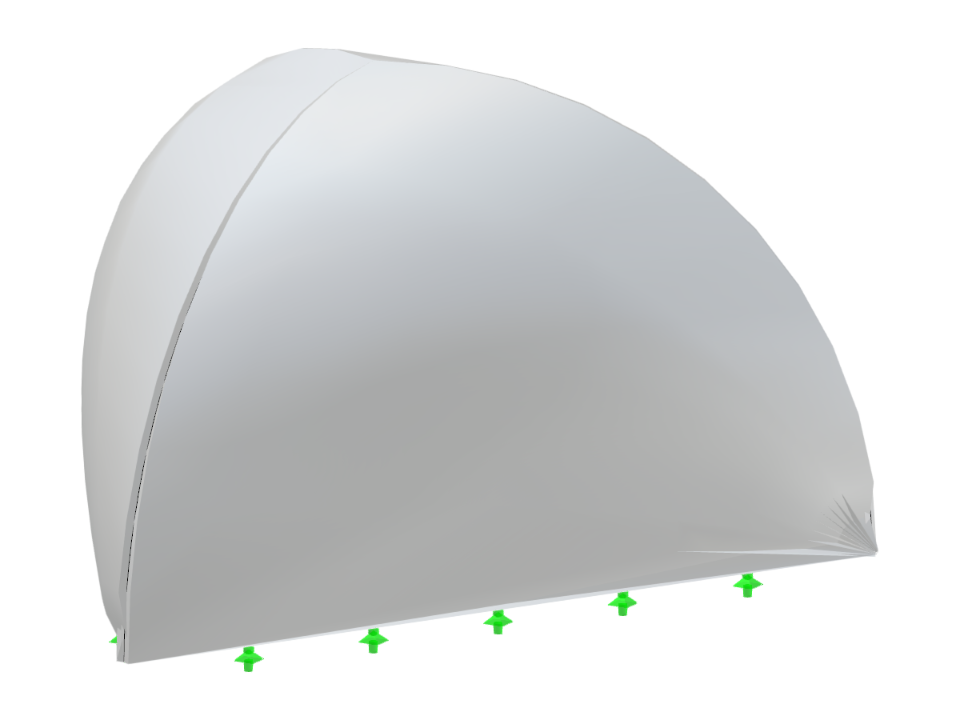

Tripartite Vault Structure
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 6 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 9.967 tons |
| Dimensions (Metric) | 5.000 x 2.887 x 4.330 m |
| Dimensions (Imperial) | 16.4 x 9.47 x 14.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
