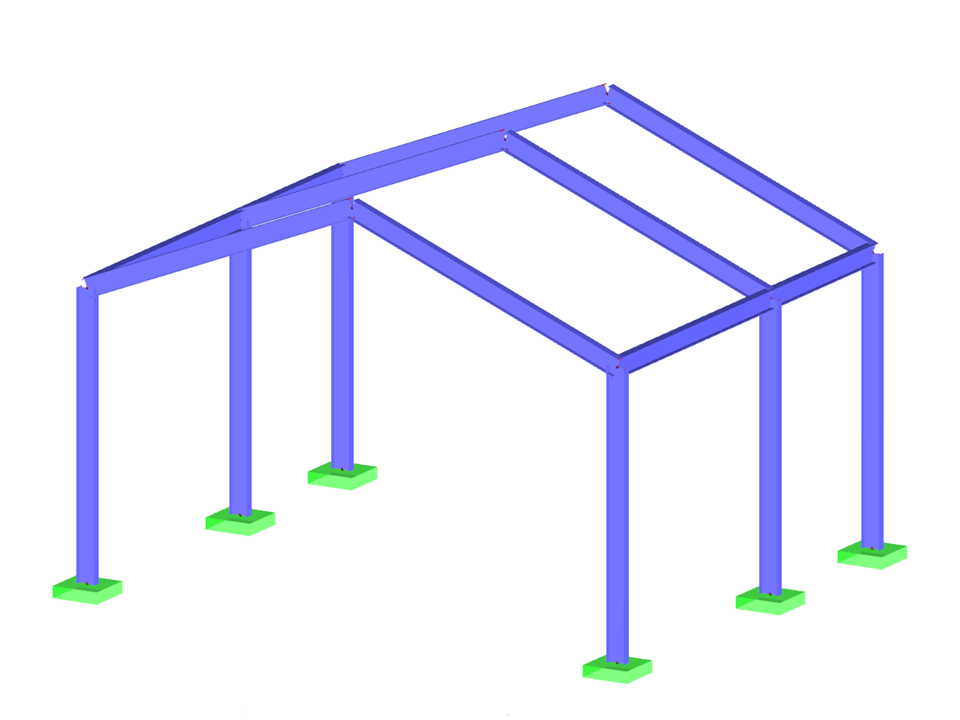

Model for FAQ 002507
In RF-/FOUNDATION Pro, the foundation design requires the definition the corresponding loading (load cases, load combinations, or result combinations) for the different design situations (STR, GEO, UPL or EQU).
RFEM/RSTAB add-on module RF-/STEEL BS | Design of steel members according to BS 5950 or BS EN 1993-1-1
Schematic representation of the temperature -time curve according to the simplified natural fire model
SHAPE-THIN determines the effective cross-sections according to EN 1993-1-3 and EN 1993-1-5 for cold-formed sections. You can optionally check the geometric conditions for the applicability of the standard specified in EN 1993‑1‑3, Section 5.2.
The effects of local plate buckling are considered according to the method of reduced widths and the possible buckling of stiffeners (instability) is considered for stiffened sections according to EN 1993-1-3, Section 5.5.
As an option, you can perform an iterative calculation to optimize the effective cross-section.
You can display the effective cross-sections graphically.
Read more about designing cold-formed sections with SHAPE-THIN and RF-/STEEL Cold-Formed Sections in this technical article: Design of a Thin-Walled, Cold-Formed C-Section According to EN 1993-1-3.
