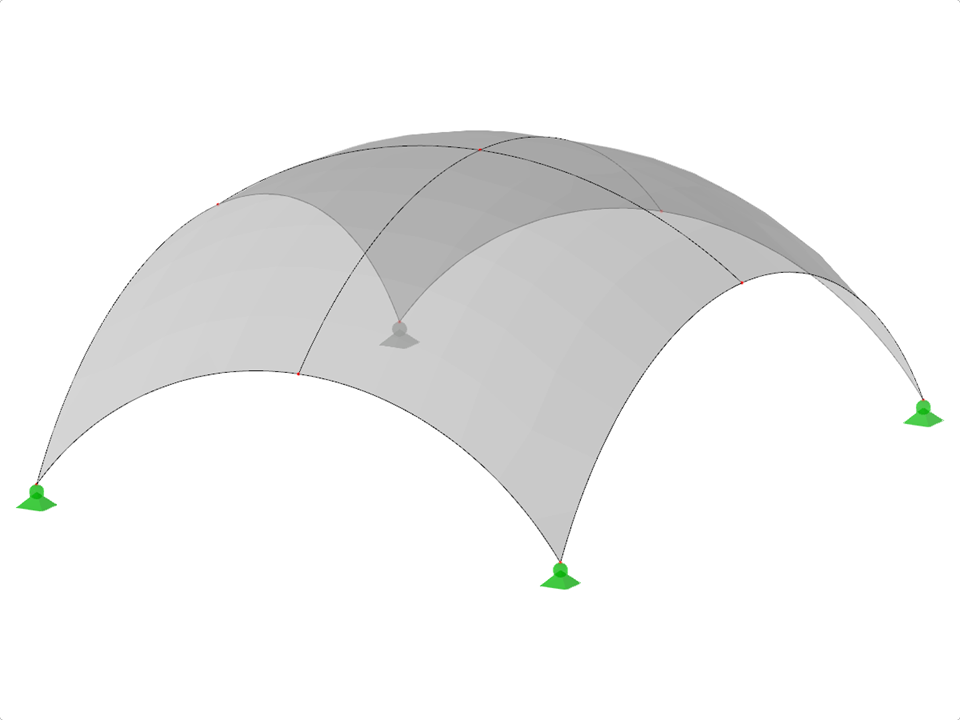

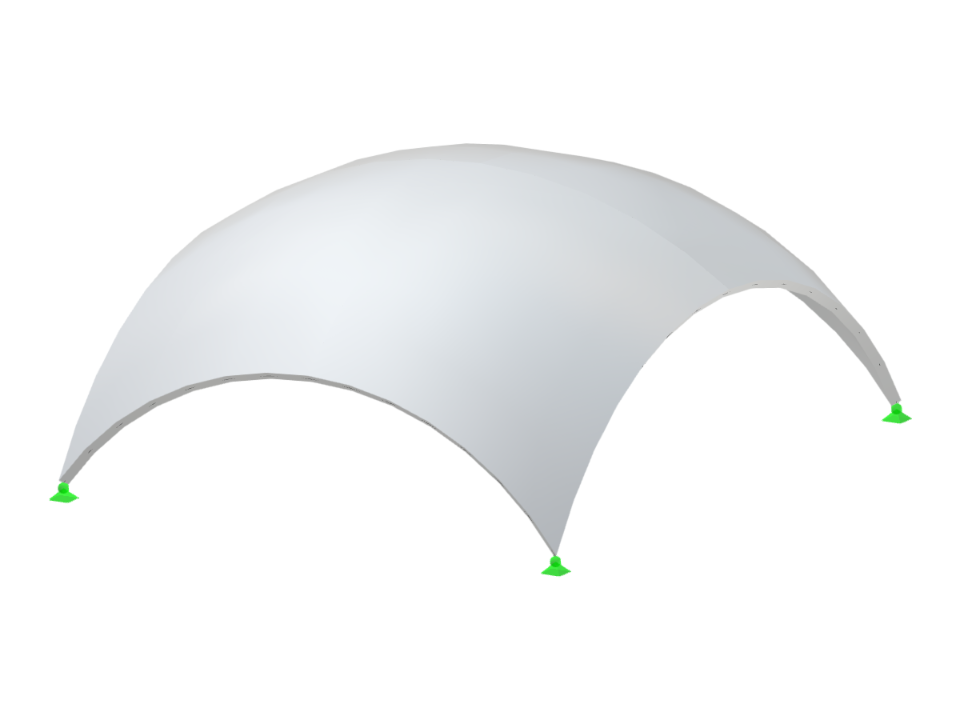

This model showcases a sail vault structure featuring a rotational shell design. The spherical surface rests on a rectangular plan, highlighting the geometric complexity and elegance of shell structures. The model demonstrates the interrelation of curvature and structural stability in architectural forms.
Rotational Shells with Spherical Surface
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 9.137 tons |
| Dimensions (Metric) | 5.000 x 2.500 x 6.000 m |
| Dimensions (Imperial) | 16.4 x 8.2 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
