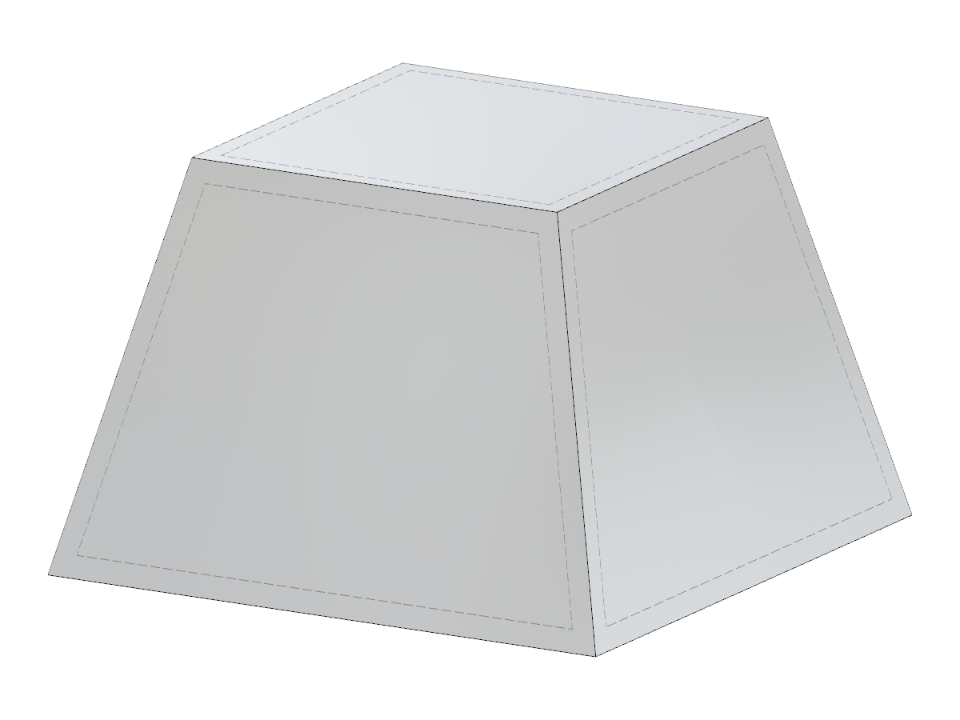

This tapered cube model utilizes a parametric approach using JavaScript for input via either height or equal edges. It demonstrates the flexibility in defining geometric properties. This model is a versatile tool for engineers interested in parametric design, allowing for an adaptable and efficient workflow.

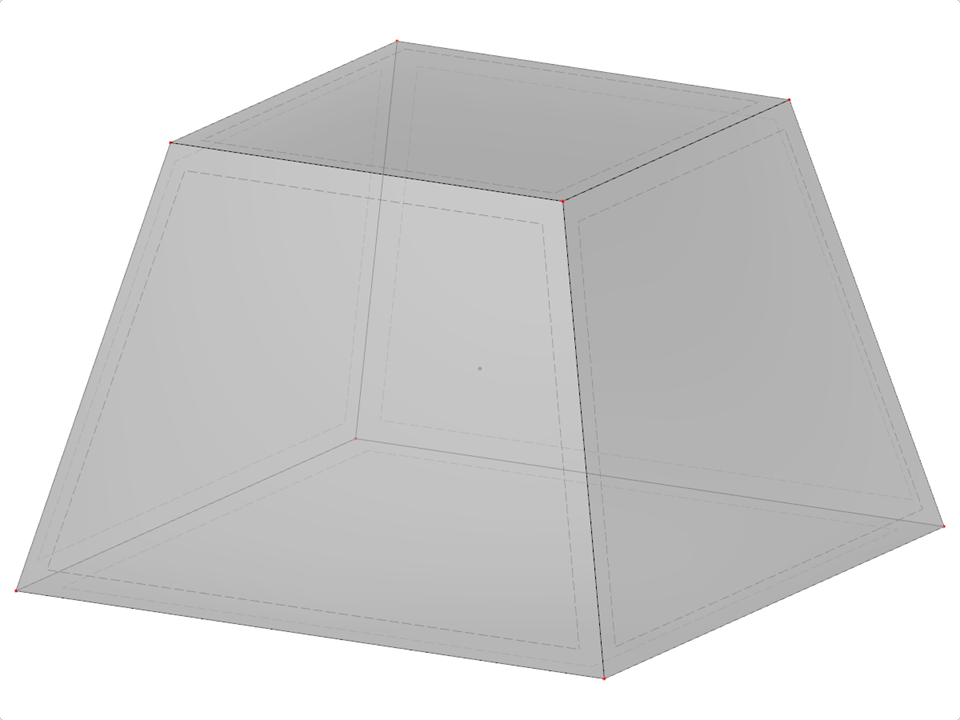

Tapered Cube Model with Parametric Input
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 253.333 tons |
| Dimensions (Metric) | 6.000 x 4.000 x 6.000 m |
| Dimensions (Imperial) | 19.69 x 13.12 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
