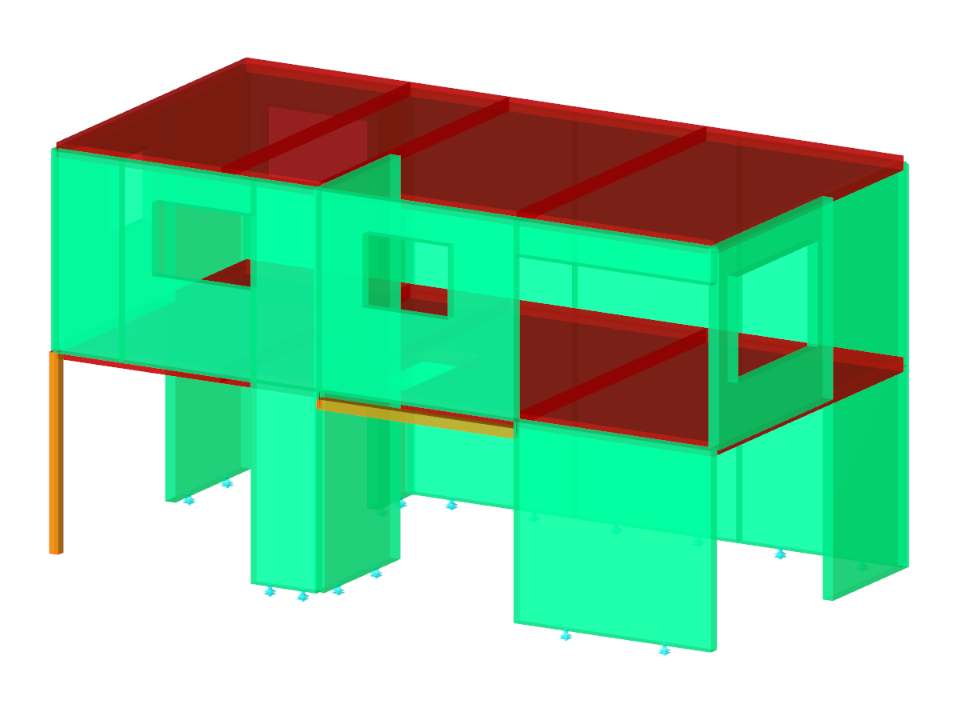

The model (ID 2205) presents an innovative timber building that uses both member and surface elements. It shows how cross-laminated timber is used to achieve typical structural timber properties and serves as a practical training tool. The structure is explained in detail in a 3D view image that illustrates the arrangement of the supporting elements. The presentation supports engineers and trainees in understanding modern timber construction techniques.
Training Model of Timber Building
| Number of Nodes | 81 |
| Number of Lines | 114 |
| Number of Members | 2 |
| Number of Surfaces | 33 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 41 |
| Number of Result Combinations | 4 |
| Total Weight | 21,088 t |
| Dimensions (Metric) | 10.409 x 5.409 x 5.705 m |
| Dimensions (Imperial) | 34.15 x 17.75 x 18.72 feet |
| Program Version | 5.25.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
