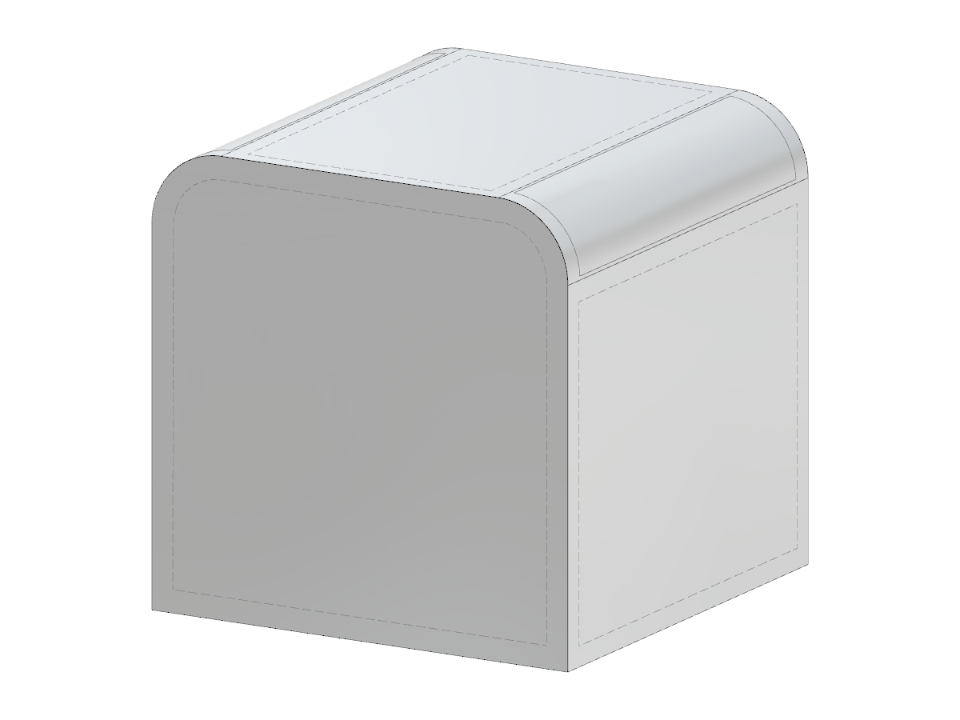

The model represents a solid structure in the shape of a modified cuboid featuring rounded edges on the top. This geometrical modification is likely designed for structural analysis or optimization. Such a form could be utilized in varying engineering scenarios depending on the specific needs of a project.
Modified Cuboid with Rounded Edges
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 18 |
| Number of Members | 0 |
| Number of Surfaces | 8 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 533.562 tons |
| Dimensions (Metric) | 6.000 x 6.000 x 6.000 m |
| Dimensions (Imperial) | 19.69 x 19.69 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
