An elliptic prism structure offers unique geometric properties suitable for aesthetically distinct architectural designs or complex engineering applications. Its shape is defined by an elliptic base with parallel top and bottom faces, providing enhanced stability and visual appeal. Often used in scenarios where light diffusion or dynamic load distribution is crucial. This model can be employed to analyze structural behavior under varied conditions.

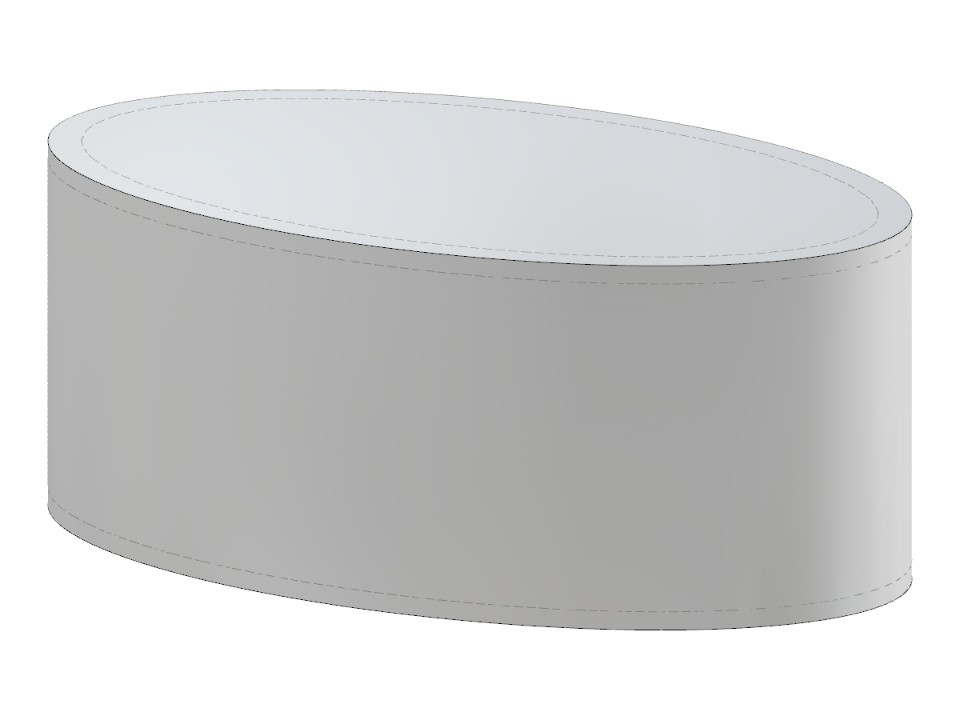

Elliptic Prism Structure
| Block parameters editable dynamically | |
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 475.551 tons |
| Dimensions (Metric) | 10.000 x 4.000 x 6.000 m |
| Dimensions (Imperial) | 32.81 x 13.12 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
