This model represents a circular spandrel surface, focusing on structural design parameters typically implemented in specialized engineering software. Such models are essential in the analysis and design of complex geometrical structures. Examine the detailed geometry composed of varying curvature and thickness parameters to ensure optimal load distribution across the spandrel surface efficiently.

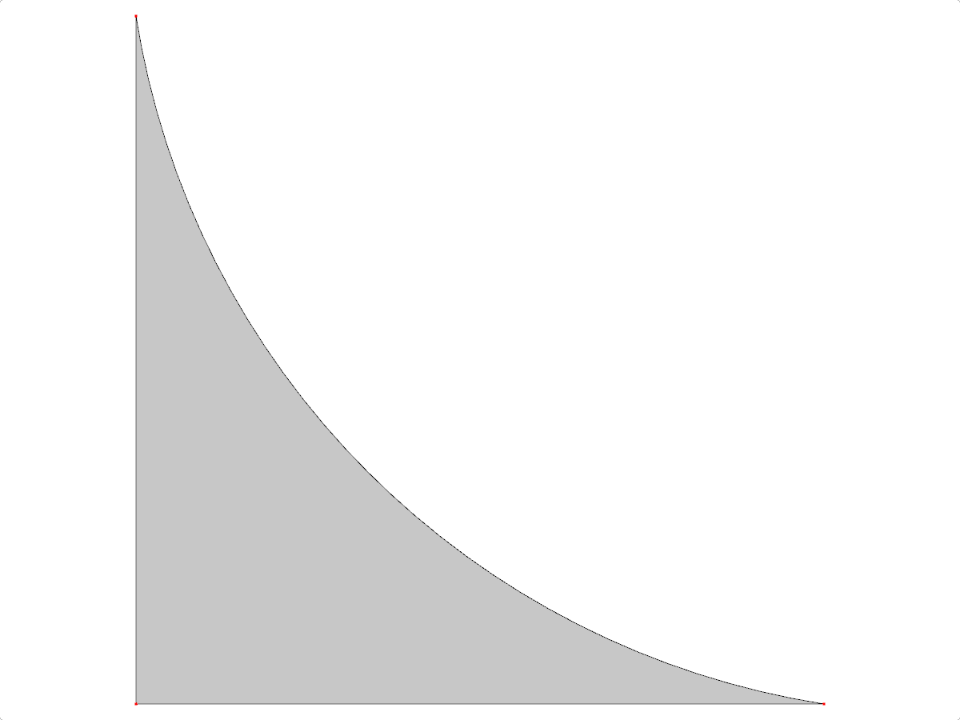

Circular Spandrel Surface
| Block parameters editable dynamically | |
| Number of Nodes | 3 |
| Number of Lines | 3 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.435 tons |
| Dimensions (Metric) | 2.500 x 0.000 x 2.500 m |
| Dimensions (Imperial) | 8.2 x 0 x 8.2 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
