This model represents a circular concrete slab featuring a rectangular opening, allowing for a study of stress distribution and structural behavior around discontinuities. Such configurations are commonly used in structural engineering projects to accommodate architectural or mechanical elements within slab systems. Advanced simulations can be conducted using appropriate finite element analysis to ensure safety and performance. Ideal for engineers exploring non-standard slab designs.

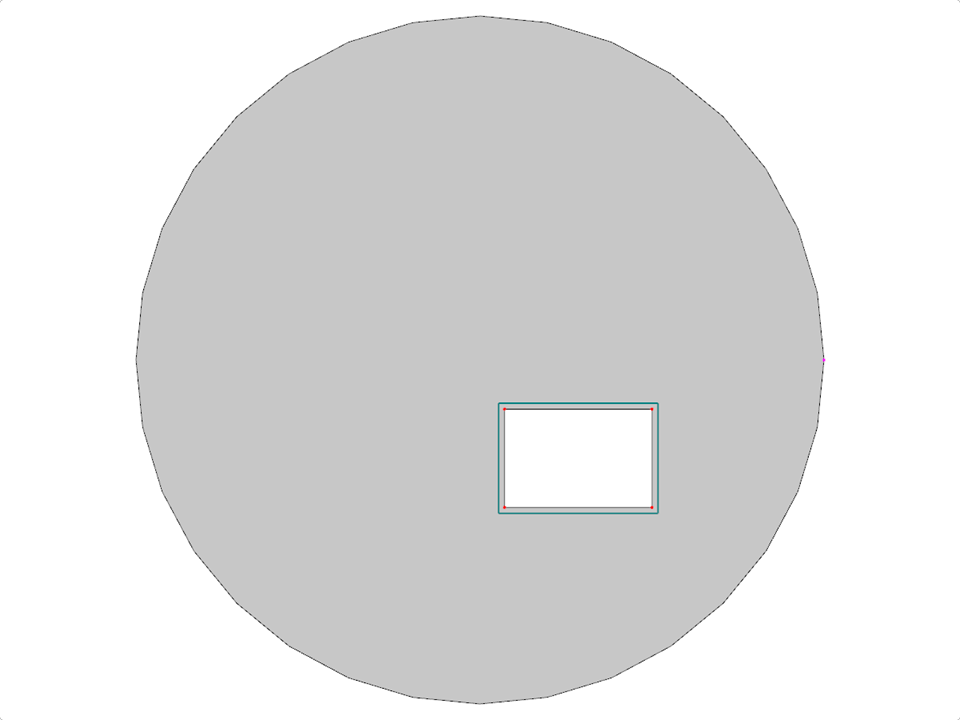

Circular Slab with Rectangular Opening
| Block parameters editable dynamically | |
| Number of Nodes | 5 |
| Number of Lines | 5 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 36.985 tons |
| Dimensions (Metric) | 14.000 x 0.000 x 14.000 m |
| Dimensions (Imperial) | 45.93 x 0 x 45.93 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
