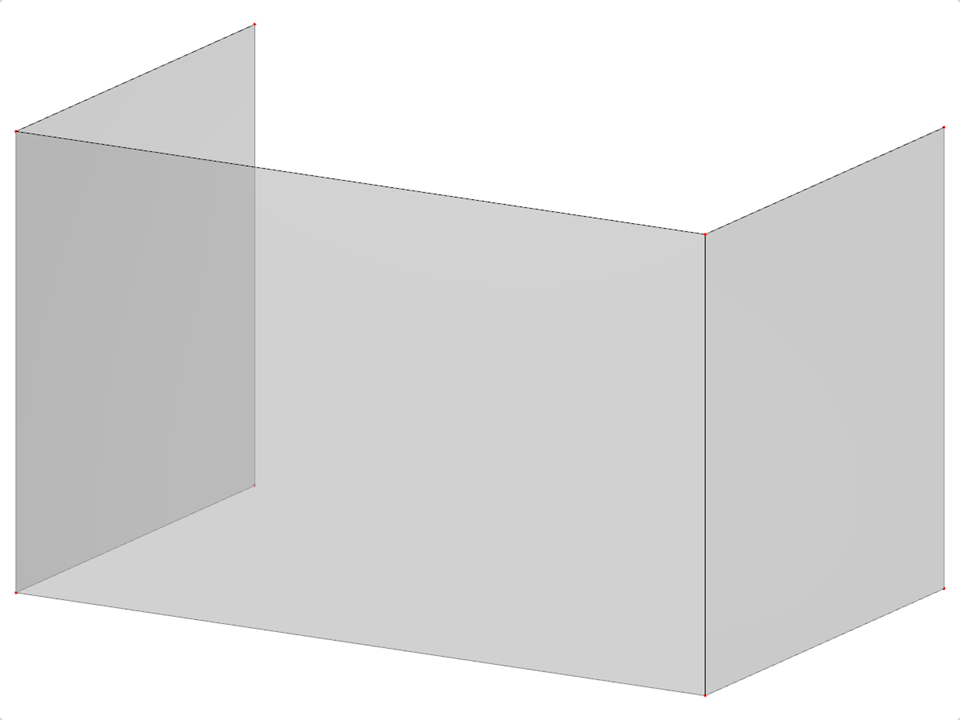

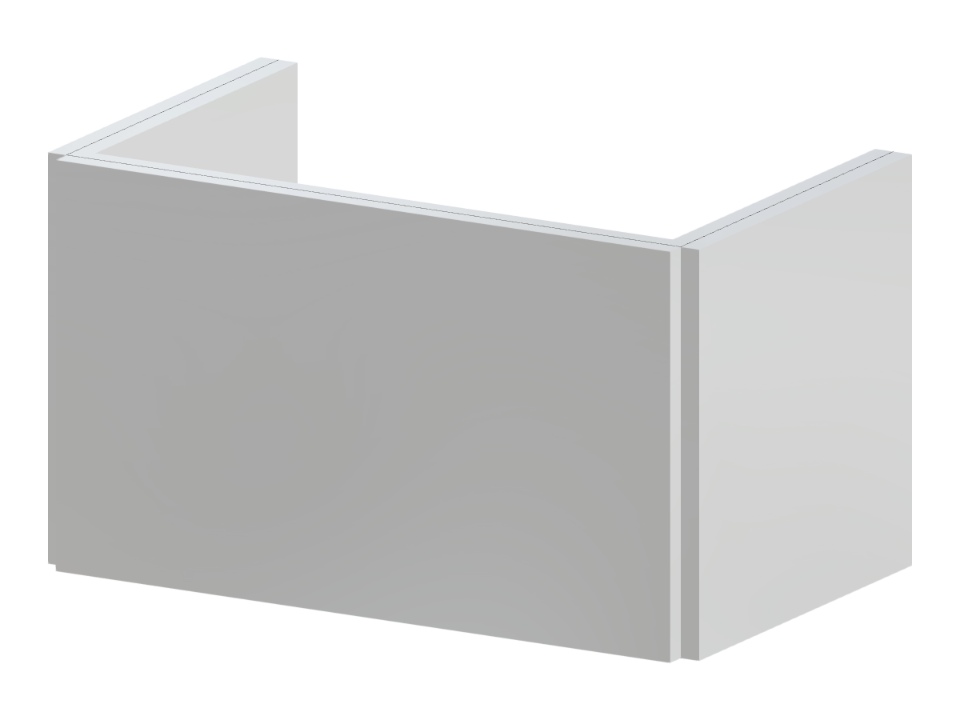

This U-shaped concrete wall model showcases the structural design and analysis of a concrete wall configuration. It may be used to simulate load distribution and evaluate wall stability under various conditions. Ideal for applications requiring enhanced structural performance and seismic resistance. The model can be integrated into advanced design workflows, providing key insights into material behavior and reinforcement strategies.
U-Shaped Concrete Wall Construction
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 24.750 tons |
| Dimensions (Metric) | 5.000 x 3.000 x 3.000 m |
| Dimensions (Imperial) | 16.4 x 9.84 x 9.84 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
