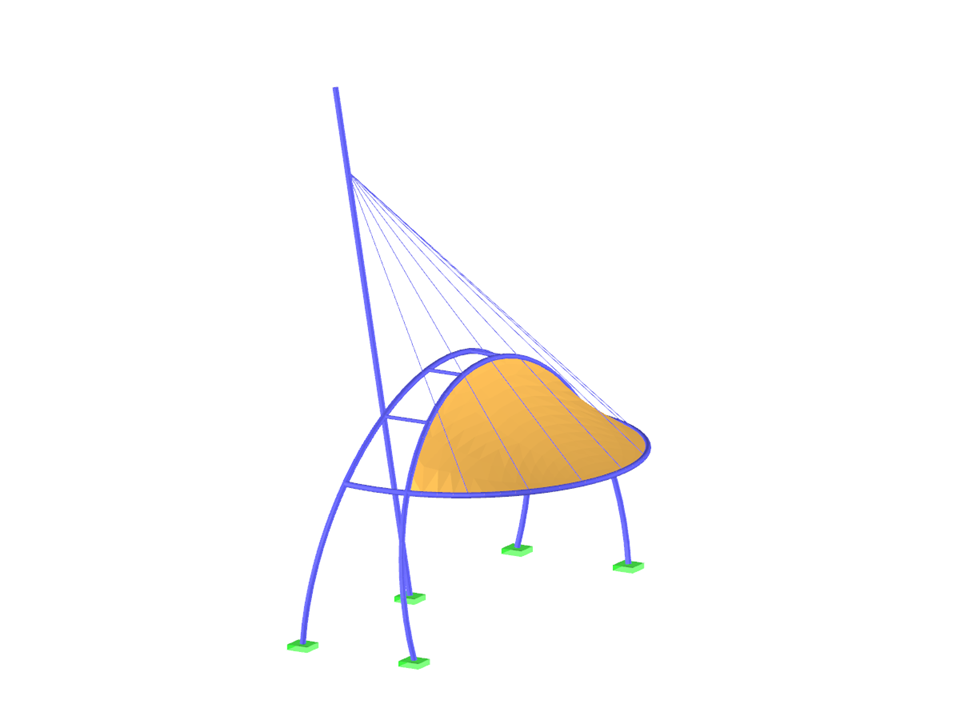

Tensile membrane structure of a roof with the shape calculated in the structural analysis software RFEM.
Membrane Roof
| Number of Nodes | 50 |
| Number of Lines | 37 |
| Number of Members | 37 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.202 tons |
| Dimensions (Metric) | 7.763 x 12.000 x 10.167 m |
| Dimensions (Imperial) | 25.47 x 39.37 x 33.36 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
