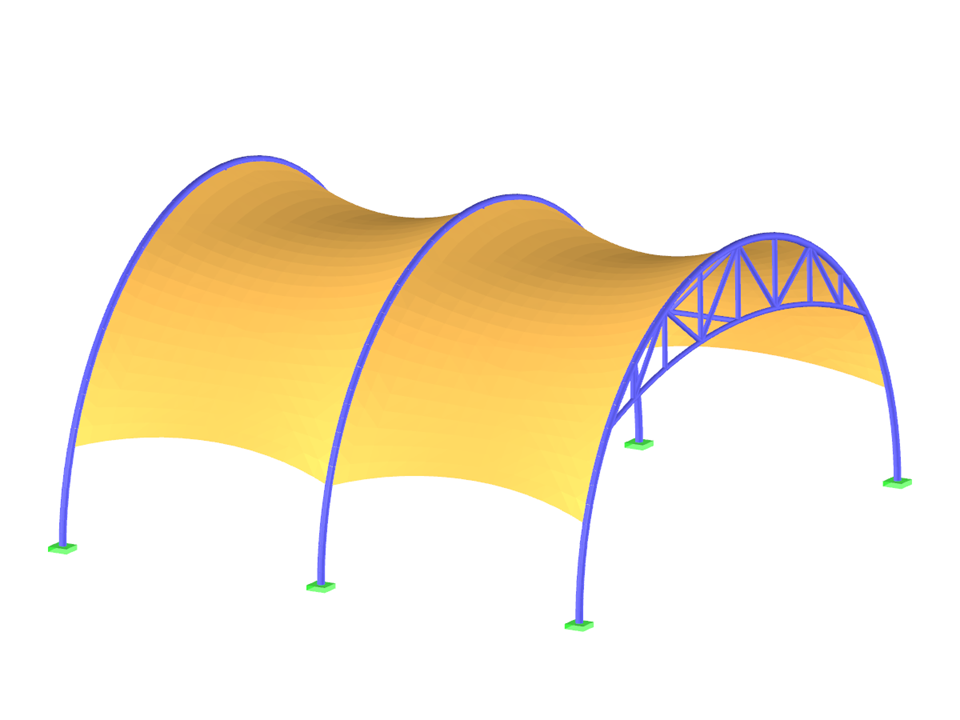

Tensile membrane structure of an arched hall with the shape calculated in the structural analysis software RFEM.
Membrane Arched Hall
| Number of Nodes | 220 |
| Number of Lines | 141 |
| Number of Members | 109 |
| Number of Surfaces | 4 |
| Number of Load Cases | 1 |
| Total Weight | 4.445 tons |
| Dimensions (Metric) | 17.683 x 17.908 x 9.741 m |
| Dimensions (Imperial) | 58.02 x 58.75 x 31.96 feet |
| Program Version | 5.26.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
