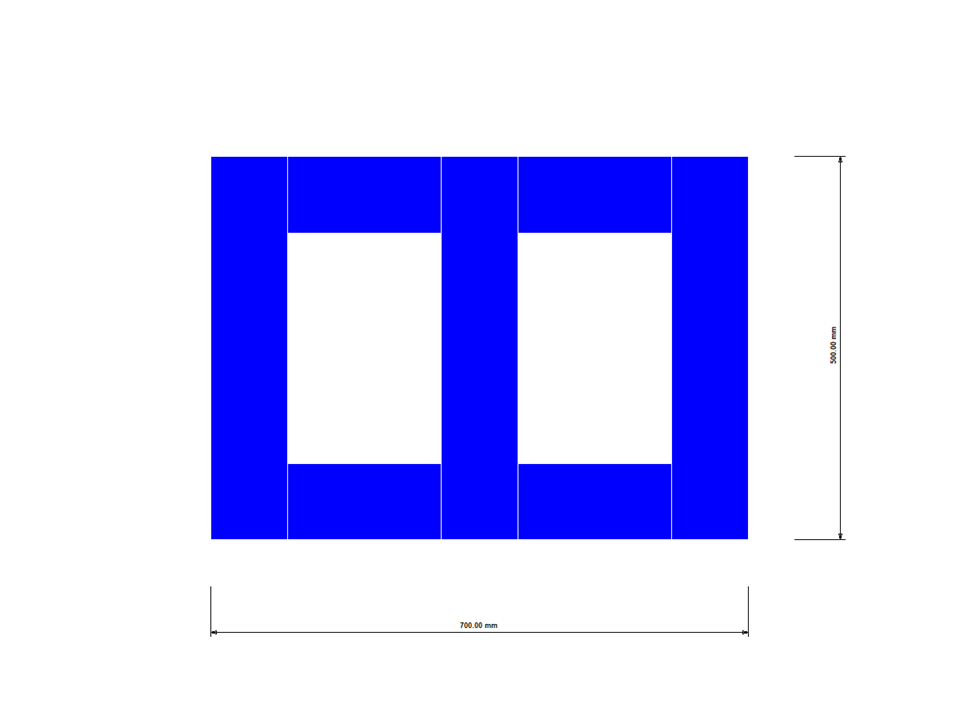

Massive Two-Box Timber Section with Vertical Connection Lines.
Massive 2BOXV Section
| Number of Nodes | 7 |
| Number of Surfaces | 20 |
| Number of Solids | 28 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
