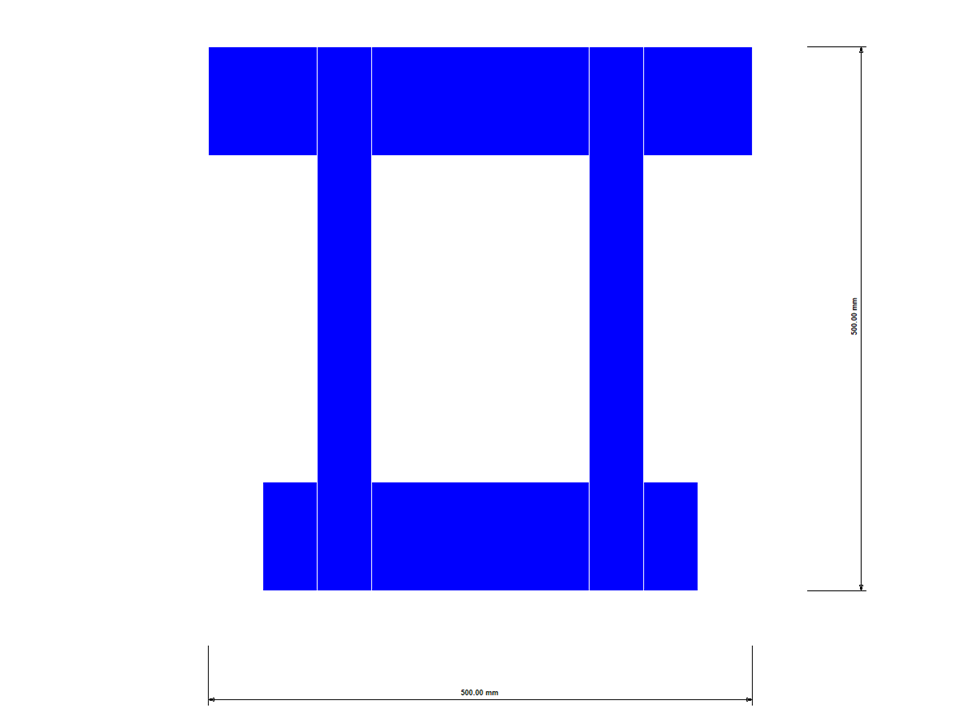

Massive Box Timber Section with Overhanging Flanges and Vertical Connection Lines.
Massive BOXOFV Section
| Number of Nodes | 8 |
| Number of Surfaces | 24 |
| Number of Solids | 32 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
