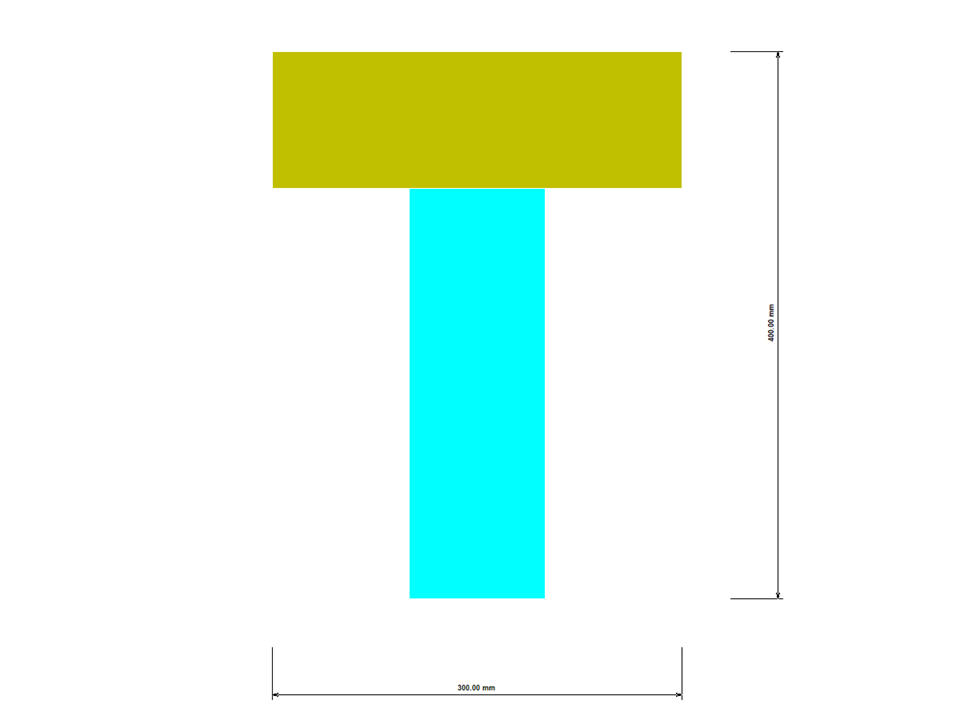

Massive Timber T-Section with a Horizontal Connection Line.
Massive T-Section
| Number of Nodes | 2 |
| Number of Surfaces | 8 |
| Number of Solids | 9 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
