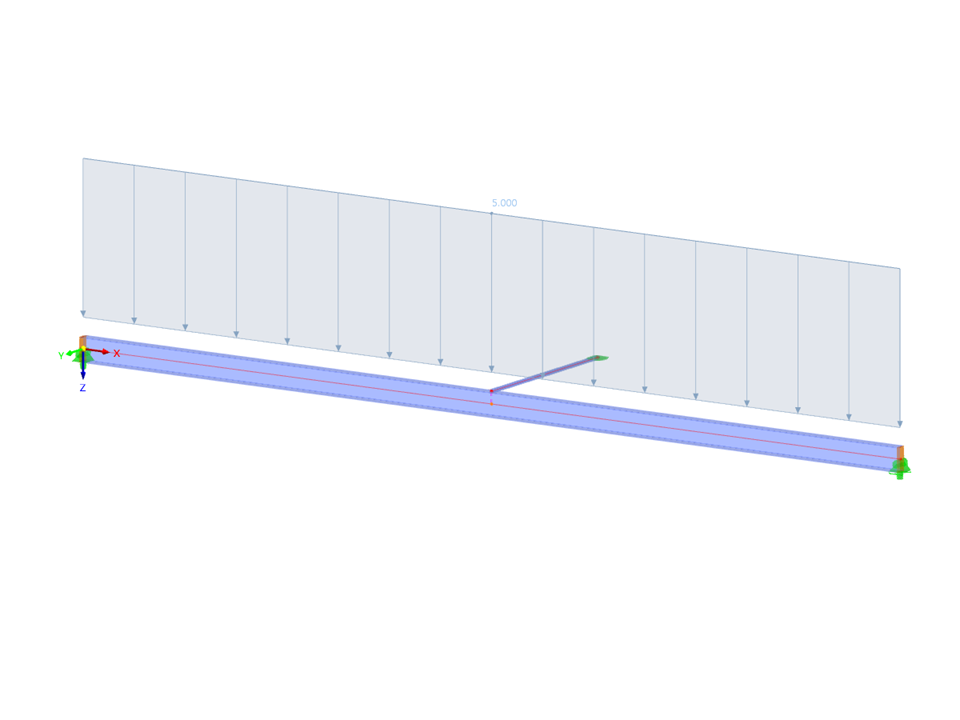

Model used to demonstrate the lateral-torsional buckling analysis with the new Torsional Warping (7 DOF) add-on for RFEM 6 / RSTAB 9.
Steel Beam | Lateral-Torsional Buckling Analysis
| Number of Nodes | 5 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 1.011 tons |
| Dimensions | 49.21 x 0.66 x 9.84 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
