Model Used in

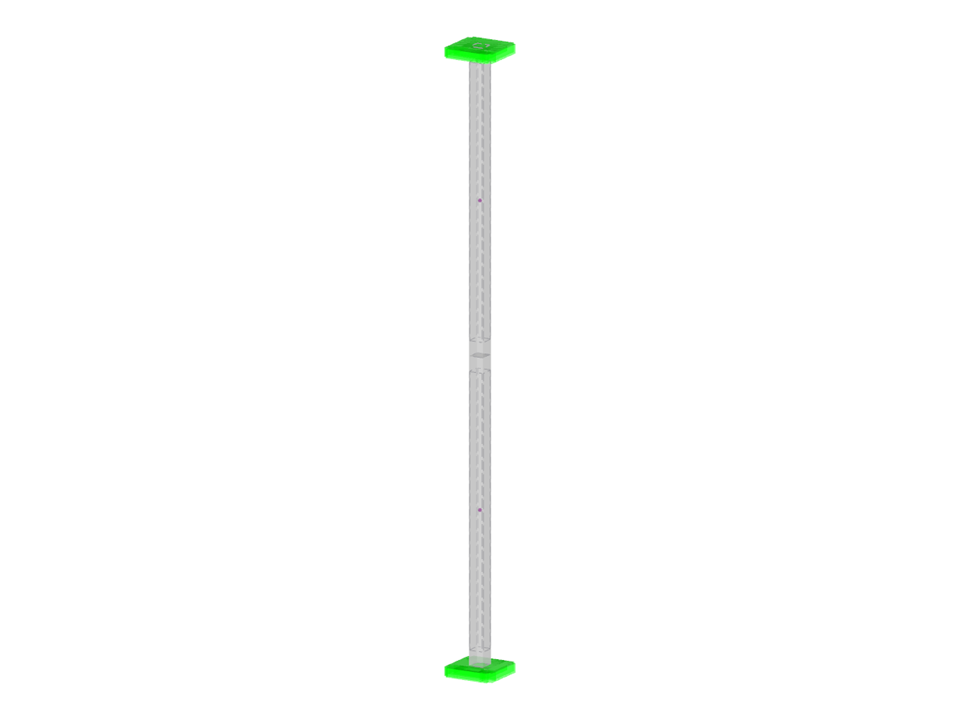

Verification Example 0008 | 4
| Number of Nodes | 12 |
| Number of Lines | 20 |
| Number of Surfaces | 11 |
| Number of Solids | 2 |
| Number of Load Cases | 2 |
| Total Weight | 0.009 tons |
| Dimensions (Metric) | 0.050 x 0.050 x 2.000 m |
| Dimensions (Imperial) | 0.16 x 0.16 x 6.56 feet |
| Program Version | 5.28.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
