This model shows a detailed steel hall created in the online training RFEM 6 Tutorial for Beginners. It corresponds to the current status of the video “Creating New Model – Base Data” and can be used for simulation with finite element analysis software. The practical approach teaches basic concepts of steel structures, providing an ideal introduction to the course content.

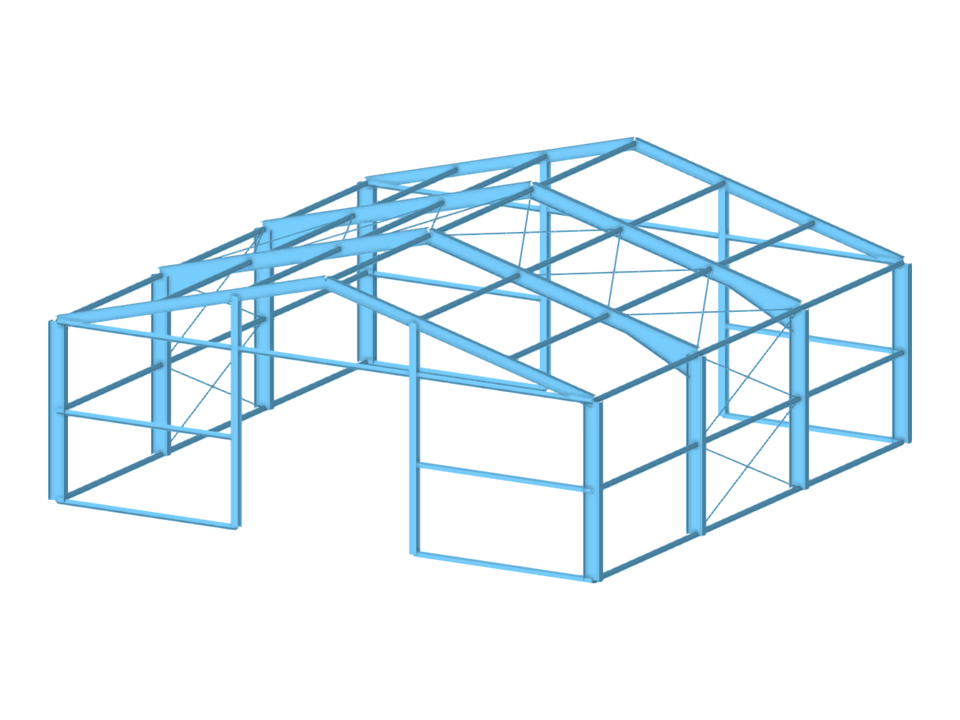

Steel Hall from Online Training | 08
| Number of Nodes | 61 |
| Number of Lines | 87 |
| Number of Members | 87 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 13,724 t |
| Dimensions (Metric) | 15,000 x 6,500 x 15,000 m |
| Dimensions (Imperial) | 49.21 x 21.33 x 49.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
