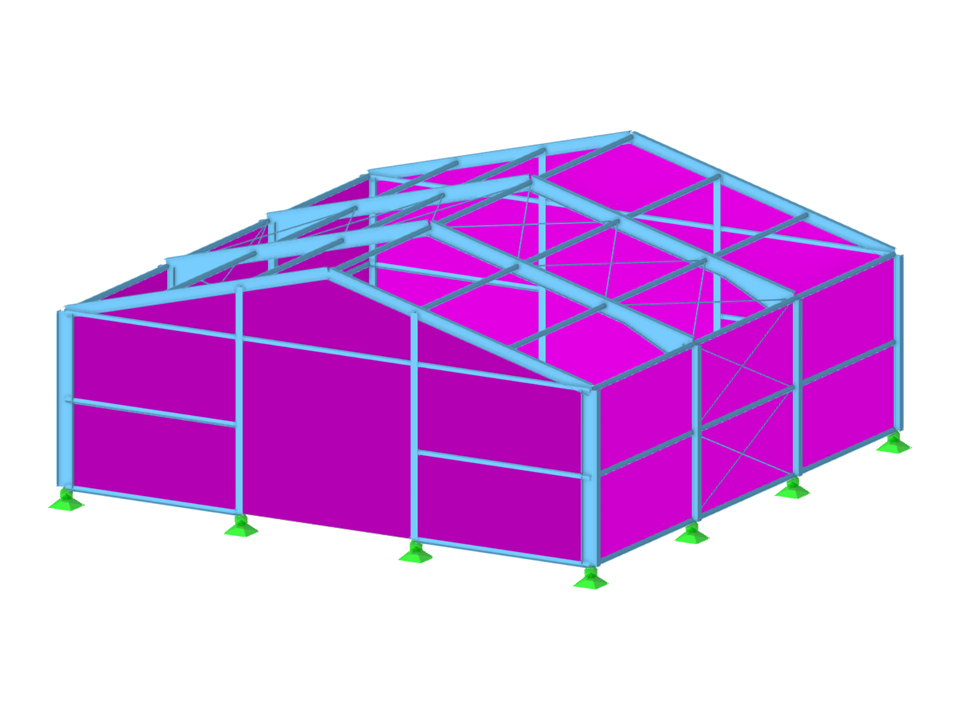

This model of a steel hall was created in the online training “RFEM 6 Tutorial for Beginners” and represents the current progress of the video “Creating New Model – Base Data.” It is used to analyze and visualize a practical structural steel project in a finite element analysis software. The clear display facilitates the introduction to digital modeling of hall structures.
Model Used in
Steel Hall from Online Training | 15
| Number of Nodes | 60 |
| Number of Lines | 89 |
| Number of Members | 87 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 13 |
| Number of Load Combinations | 120 |
| Number of Result Combinations | 0 |
| Total Weight | 13,724 t |
| Dimensions (Metric) | 15,000 x 6,500 x 15,000 m |
| Dimensions (Imperial) | 49.21 x 21.33 x 49.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
