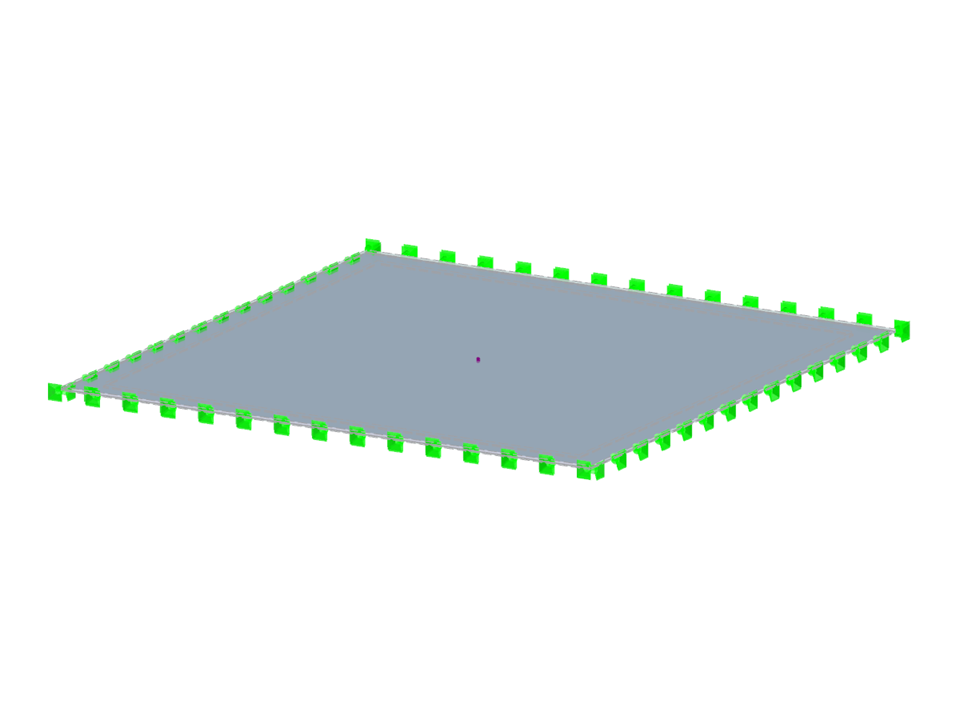

Model Used in
Verification Example 0031 | 3
| Number of Nodes | 16 |
| Number of Lines | 28 |
| Number of Surfaces | 16 |
| Number of Solids | 3 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 1.000 x 1.000 x 0.007 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0.02 feet |
| Program Version | 5.28.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
