Download the model of a steel platform here and open it with the finite element program RFEM. This model was created for the online training 'RFEM 6 Tutorial with Rhino & Grasshopper.'

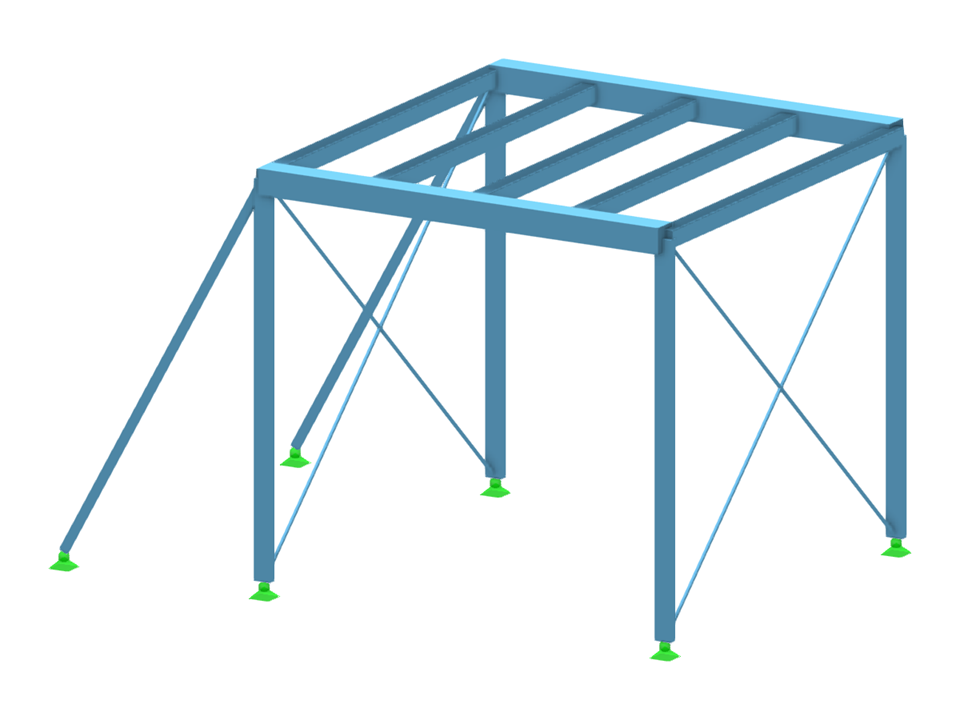

Steel Platform from Online Training | RFEM 6 Tutorial with Rhino & Grasshopper
| Number of Nodes | 16 |
| Number of Lines | 17 |
| Number of Members | 17 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.304 tons |
| Dimensions (Metric) | 7.500 x 4.500 x 5.000 m |
| Dimensions (Imperial) | 24.61 x 14.76 x 16.4 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
