The model is created using the Steel Joints add-on in RFEM 6. The joint is designed for buckling stability. On the model, you can display the buckling in the member or directly in the connection.

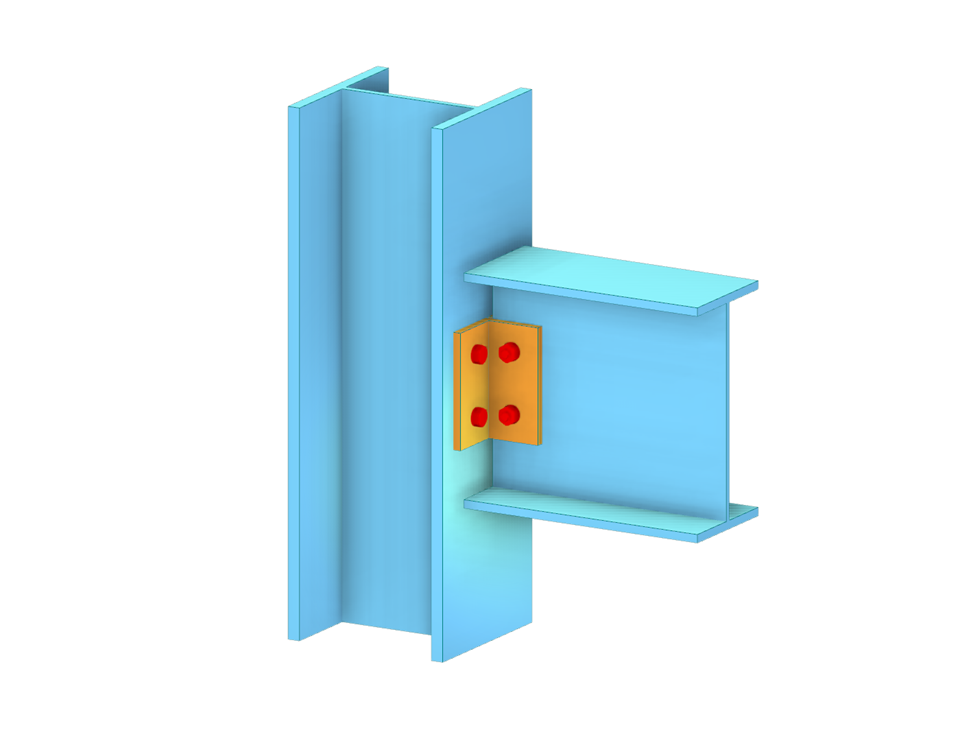

Steel Joint for Connecting Beam to Column
| Number of Nodes | 689 |
| Number of Lines | 538 |
| Number of Members | 444 |
| Number of Surfaces | 25 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.067 tons |
| Dimensions | 1.84 x 2.3 x 0.72 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
