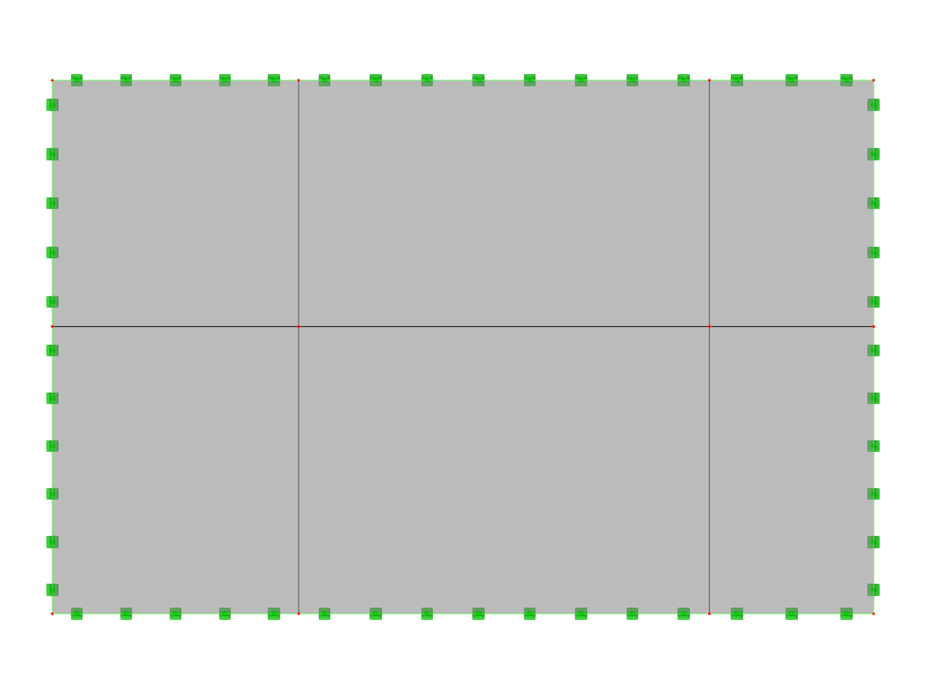

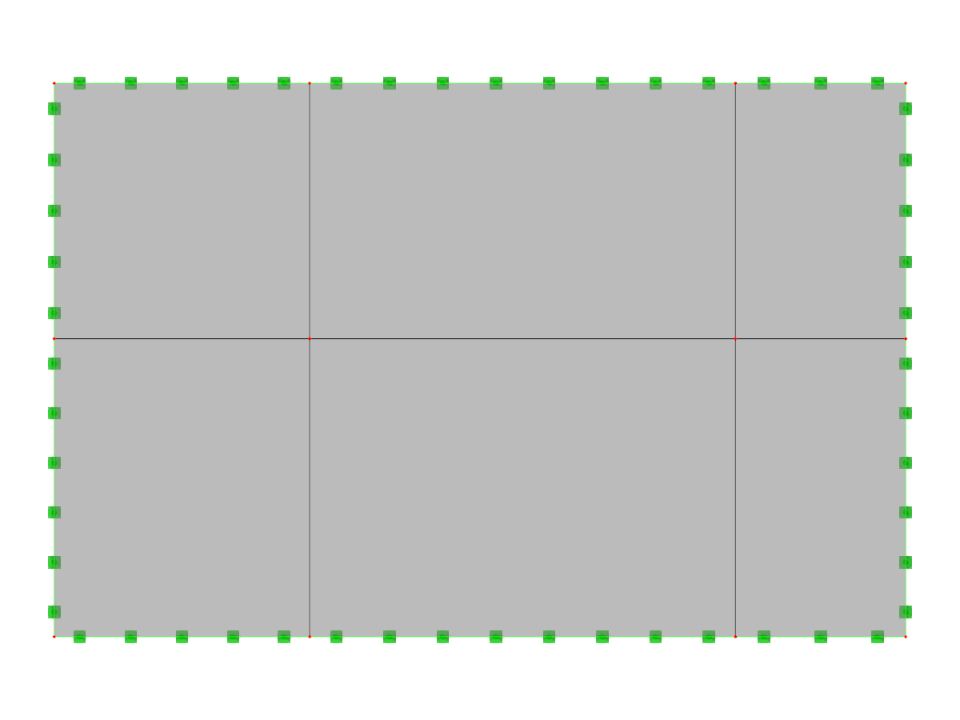

The model consists of a concrete slab divided into six segments. This structural design demonstrates common techniques in concrete slab construction, emphasizing the division into multiple parts for specific project requirements. Such configurations are frequent in large building projects where sectional casting is beneficial.
Concrete Slab Segmentation
| Block parameters editable dynamically | |
| Number of Nodes | 12 |
| Number of Lines | 17 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 16.250 tons |
| Dimensions (Metric) | 10.000 x 0.000 x 6.500 m |
| Dimensions (Imperial) | 32.81 x 0 x 21.33 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
