FAQ 005240 | Effective Lengths for Steel Stability Design
Model Used in

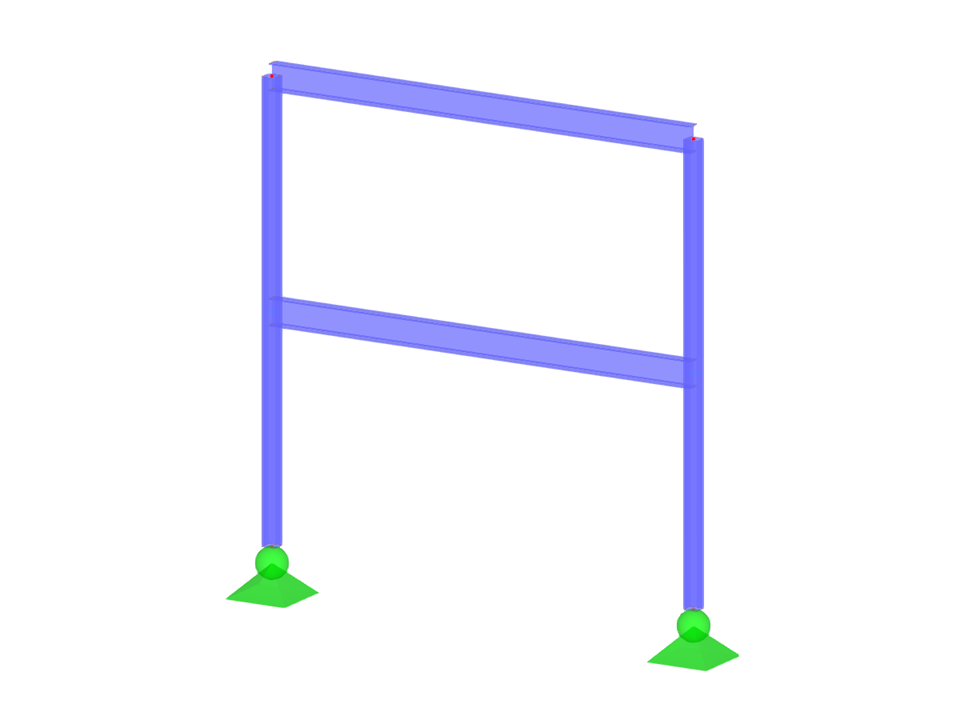

Effective Lengths Example Frames
| Number of Nodes | 6 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 1.704 tons |
| Dimensions (Metric) | 6.096 x 6.096 x 0.000 m |
| Dimensions (Imperial) | 20 x 20 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
