The research document investigates mass timber materials and their constructability, particularly for the mass timber class located in the San Juan Nuevo Forest in Michoacán, Mexico.

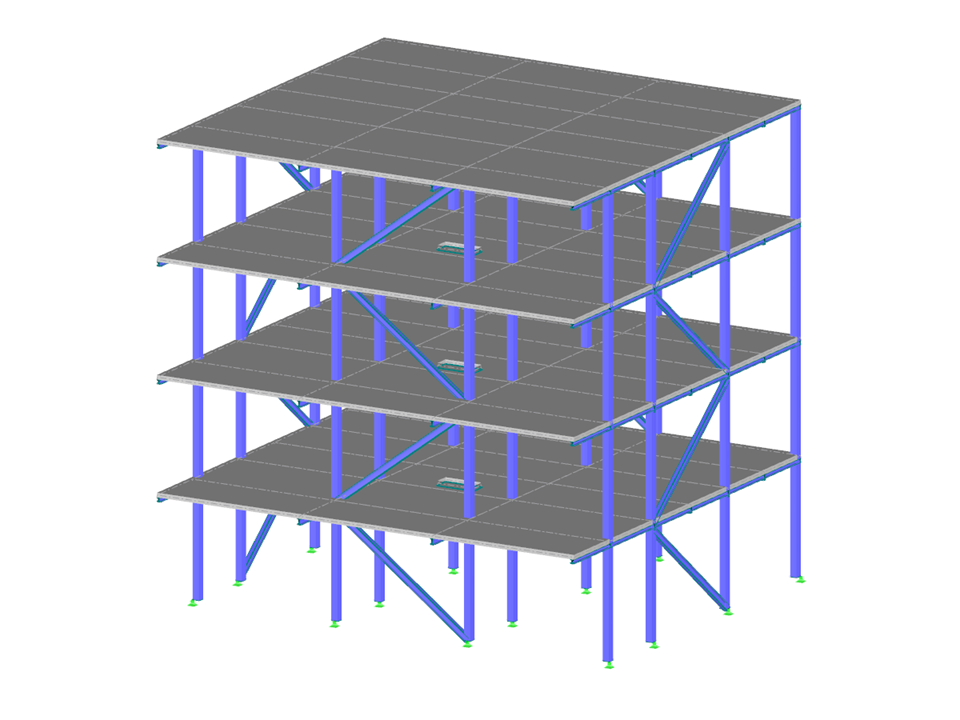

Mass Timber Construction. Proposal to Construct Sustainable Vertical Building in Zapopan
| Number of Nodes | 146 |
| Number of Lines | 278 |
| Number of Members | 254 |
| Number of Surfaces | 72 |
| Number of Load Cases | 22 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 6 |
| Total Weight | 178.435 tons |
| Dimensions | 41.99 x 38.88 x 41.73 feet |
| Program Version | 5.10.01 |
