This model of a steel hall can be imported directly into RFEM 6, providing realistic approaches to analyzing steel hall structures. It was demonstrated in the free webinar "The Most Frequently Asker Questions Answered by Dlubal Support Team" presented on July 7, 2022 (in English; on July 5, 2022, in German). The model is excellent for illustrating finite element analysis of steel structures.

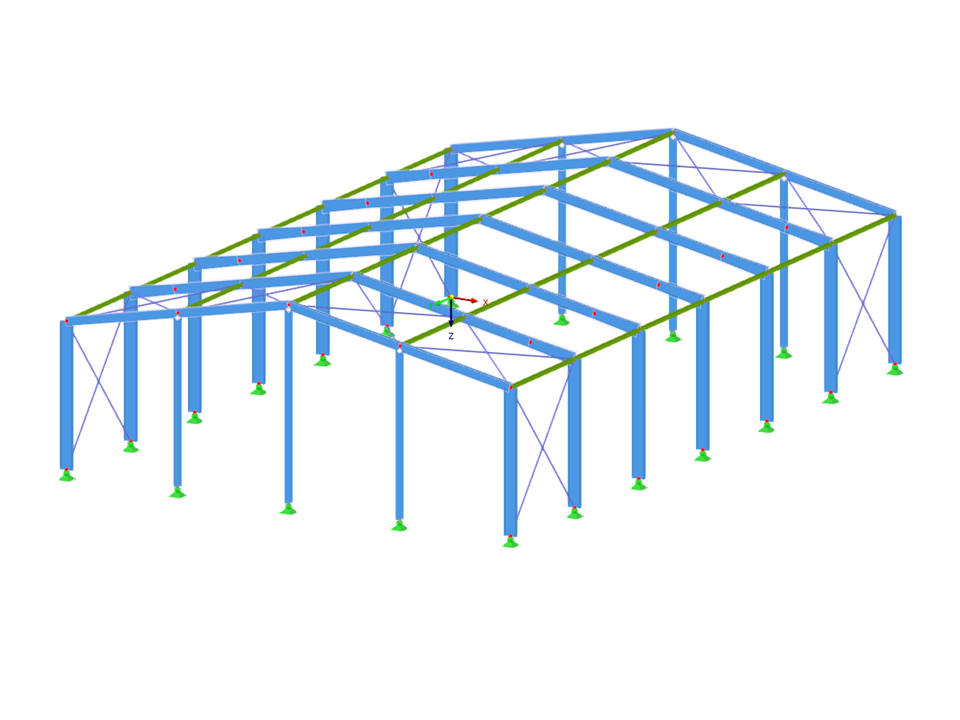

Steel Hall
| Number of Nodes | 65 |
| Number of Lines | 112 |
| Number of Members | 112 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 12 |
| Number of Load Combinations | 328 |
| Number of Result Combinations | 2 |
| Total Weight | 19,830 t |
| Dimensions (Metric) | 20,000 x 8,000 x 30,000 m |
| Dimensions (Imperial) | 65.62 x 26.25 x 98.43 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
