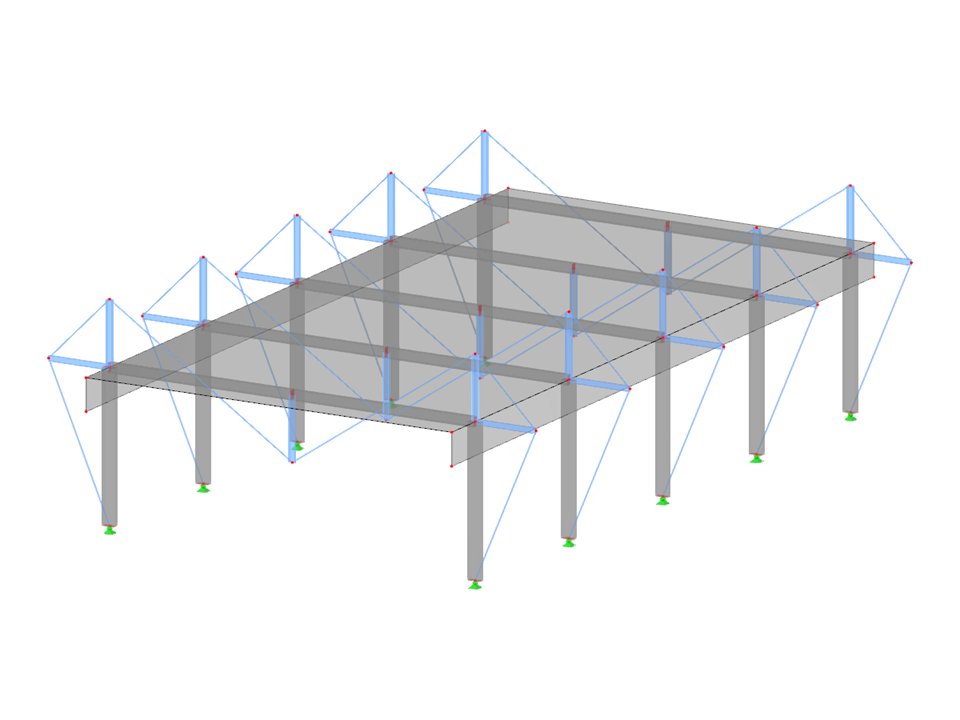

Hybrid Structure System | Superposition System | Superposition of section-active and form-active structure systems | Cable supported hinged frames | Two-hinged frame with bilateral cable support
HSS008-a | Hybrid Structure System
| Block parameters editable dynamically | |
| Number of Nodes | 58 |
| Number of Lines | 85 |
| Number of Members | 75 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 389.132 tons |
| Dimensions (Metric) | 24,000 x 10,000 x 36,000 m |
| Dimensions (Imperial) | 78.74 x 32.81 x 118.11 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
