Download the model of a deep beam made of cross-laminated timber here and open it with the structural FEA software RFEM.
This model is used in the free webinar "Modeling and Design of Cross-Laminated Timber Panels in RFEM 6" on January 19, 2023 (in English; on January 17, 2023, in German).
Model Used in

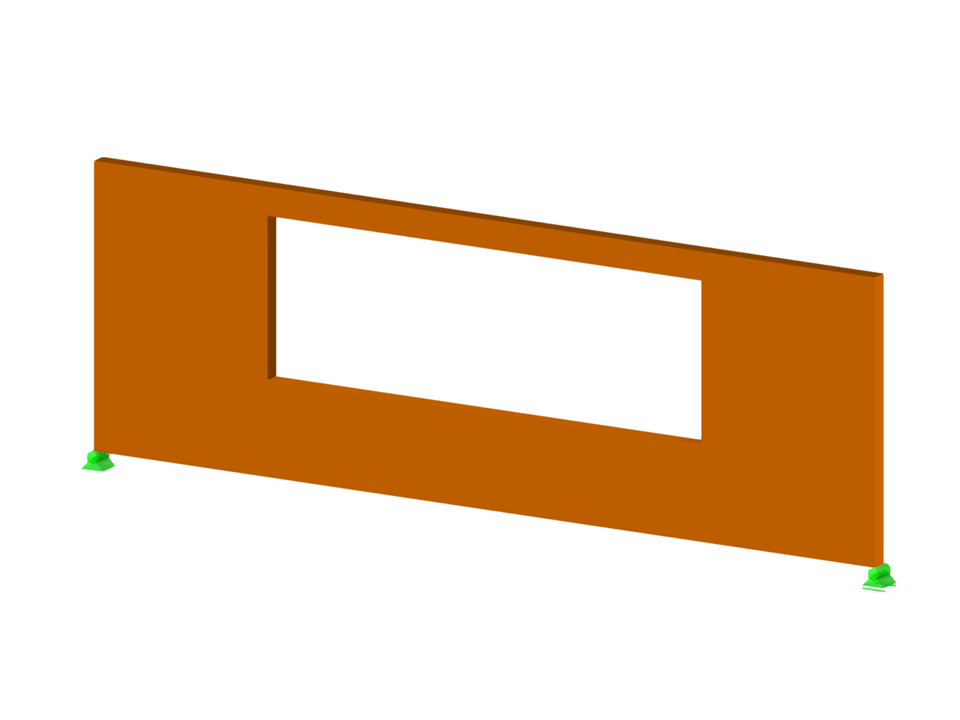

Cross-Laminated Timber (CLT) Deep Beam
| Number of Nodes | 8 |
| Number of Lines | 8 |
| Number of Members | 0 |
| Number of Surfaces | 1 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 1.457 tons |
| Dimensions (Metric) | 9.000 x 3.000 x 0.000 m |
| Dimensions (Imperial) | 29.53 x 9.84 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
