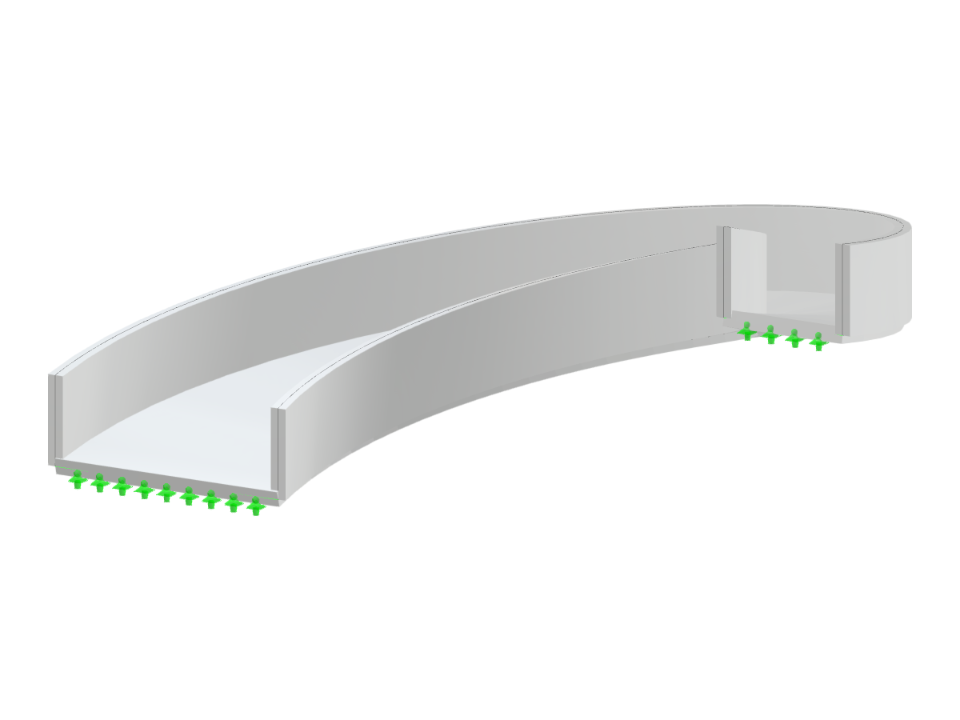

This model features a semi-circle, single-flight, right-hand concrete staircase with an unequal flight width. It serves as an example of complex geometric staircase design, often applied in modern architectural projects to enhance visual appeal and structural efficiency. The asymmetry in flight width showcases the adaptation in design for space optimization while maintaining structural integrity.

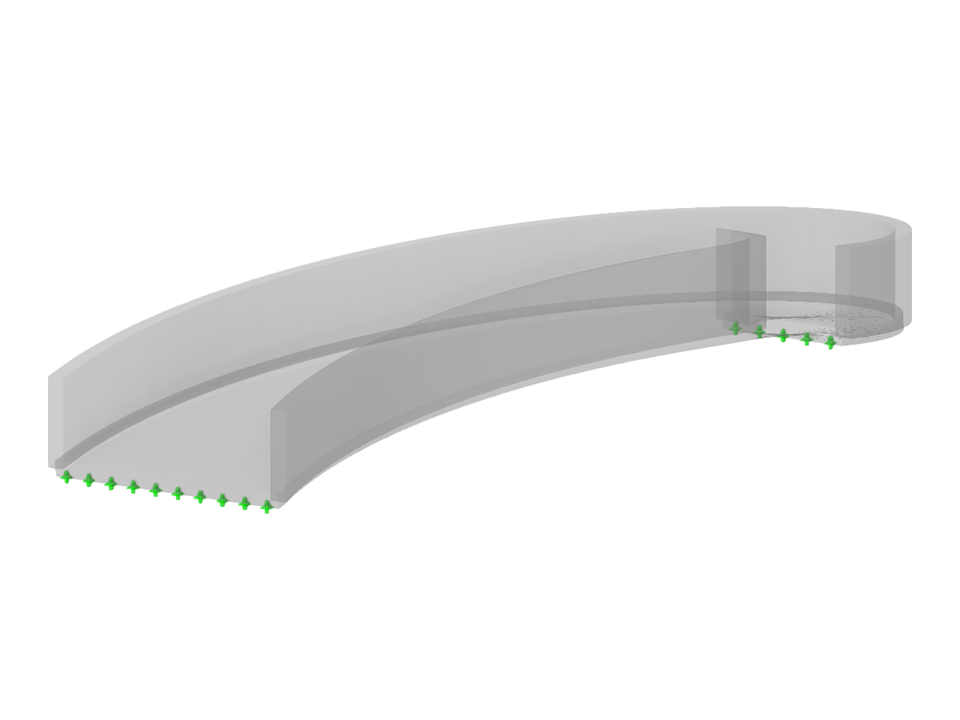

Single-Flight Semi-Circular Concrete Staircase
| Block parameters editable dynamically | |
| Number of Nodes | 44 |
| Number of Lines | 46 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 29.755 tons |
| Dimensions (Metric) | 10.600 x 4.100 x 5.300 m |
| Dimensions (Imperial) | 34.78 x 13.45 x 17.39 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
