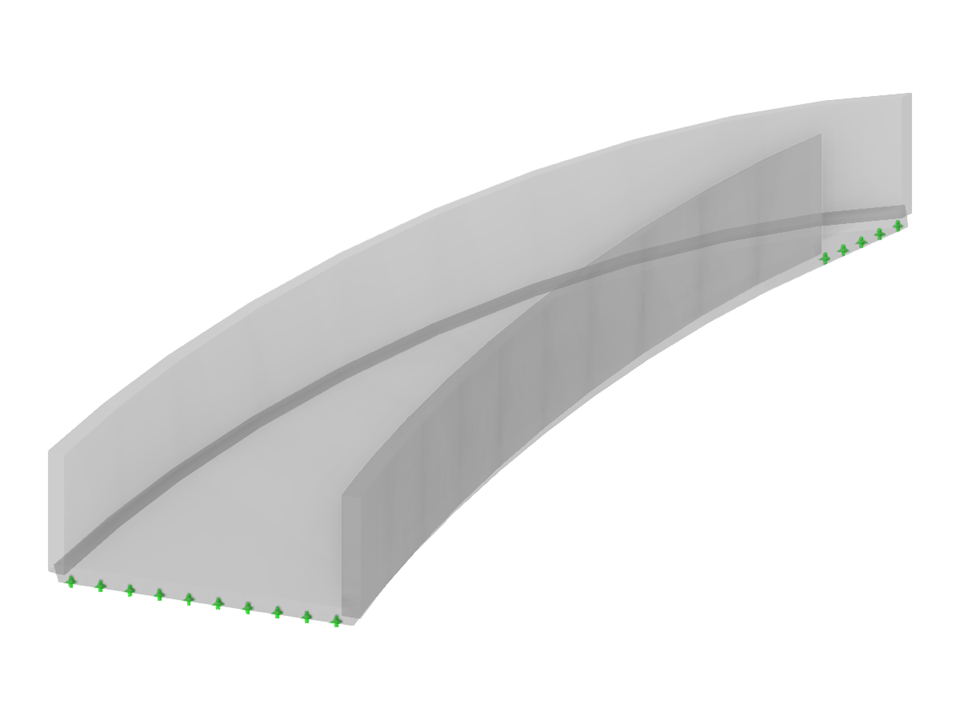

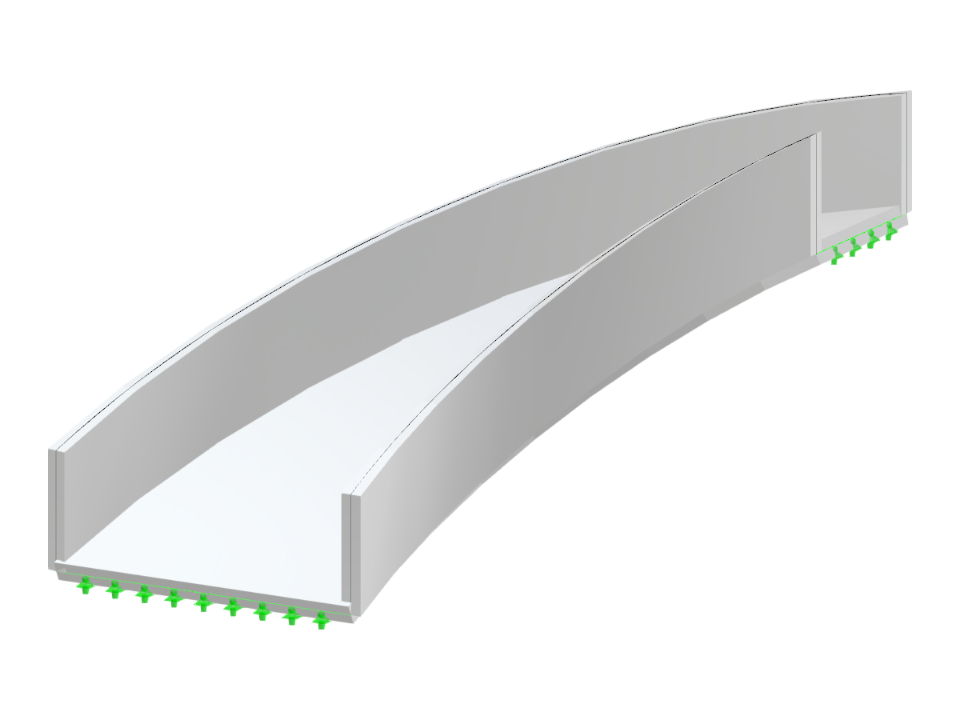

Quadrant-circle single-flight concrete right-hand staircase with unequal flight width.
STC015 | Quarter-Circle Single-Flight Staircase
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 14.581 tons |
| Dimensions | 19.69 x 13.45 x 15.09 feet |
