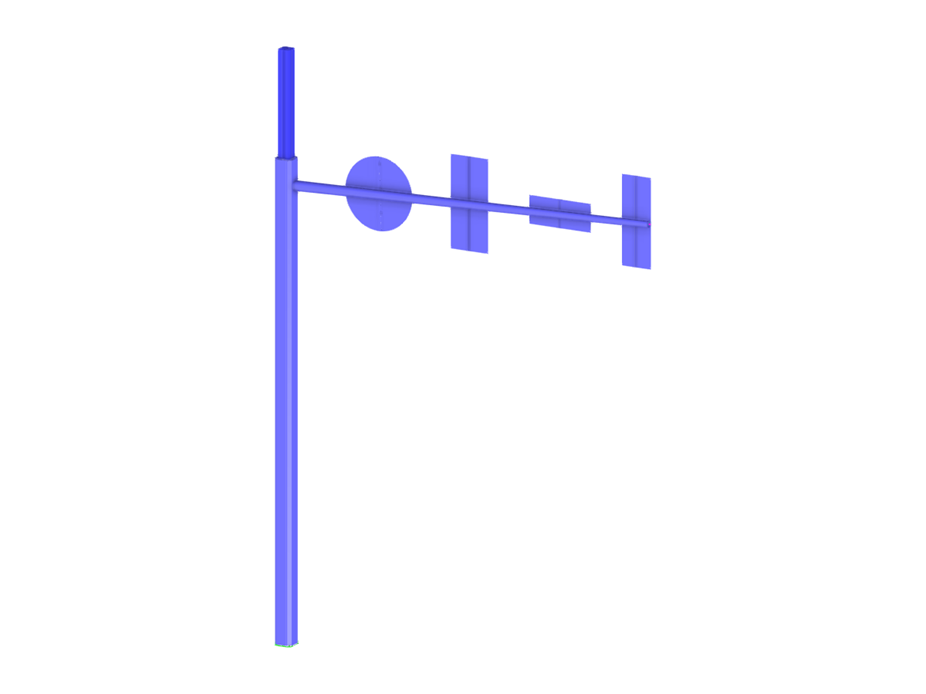

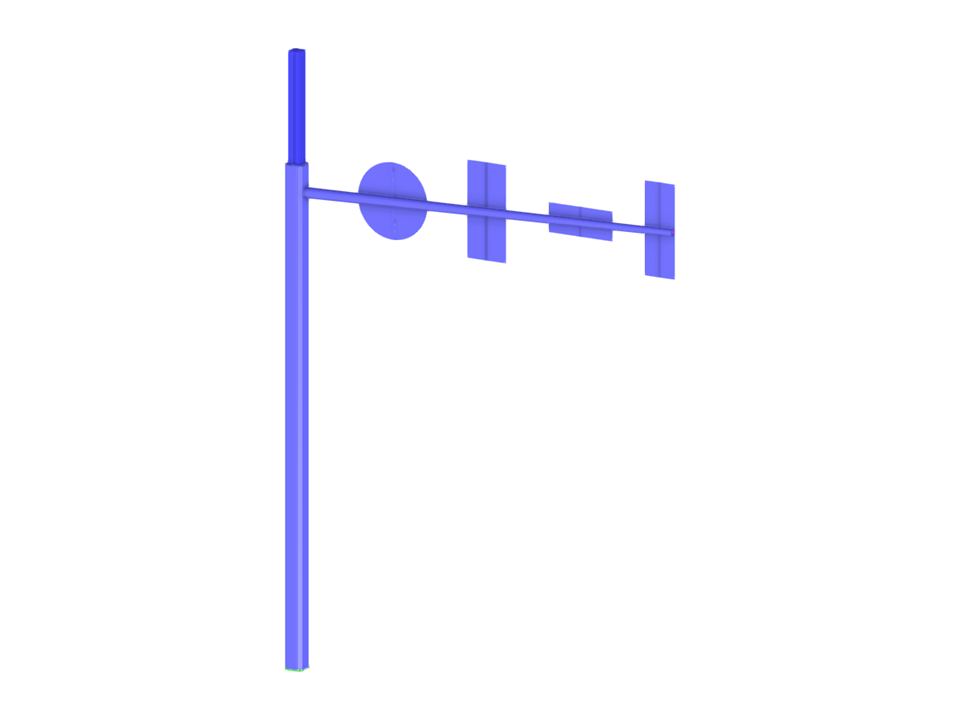

Steel Street Light Cantilever Structure without a Hole in the Column. The Column without a Hole is Carrying a Large Torsional Moment but will not Result in a Large Stress.
Street Light
| Number of Nodes | 51 |
| Number of Lines | 64 |
| Number of Members | 43 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 3 |
| Number of Result Combinations | 0 |
| Total Weight | 0.548 tons |
| Dimensions | 0.16 x 28.94 x 19.67 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
