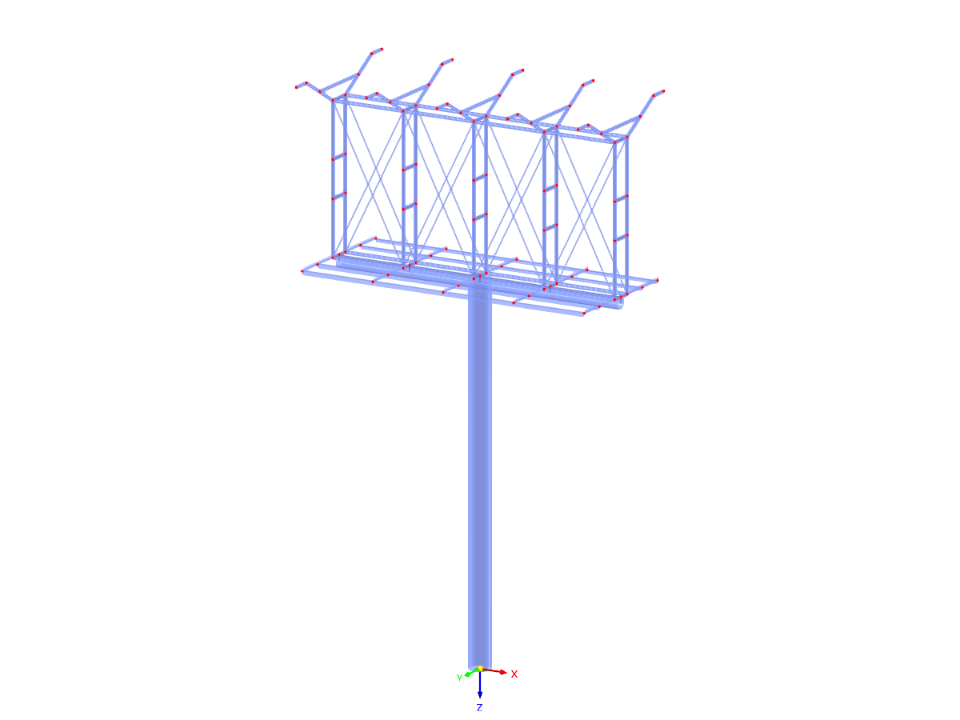

This model presents the structural design of a billboard. It includes considerations for wind load and stability, ensuring optimal performance. Using Finite Element Analysis, the model facilitates the examination of stress distribution and structural integrity.
Billboard Structure Design
| Block parameters editable dynamically | |
| Number of Nodes | 96 |
| Number of Lines | 163 |
| Number of Members | 163 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.566 tons |
| Dimensions (Metric) | 8.000 x 14.750 x 4.210 m |
| Dimensions (Imperial) | 26.25 x 48.39 x 13.81 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
