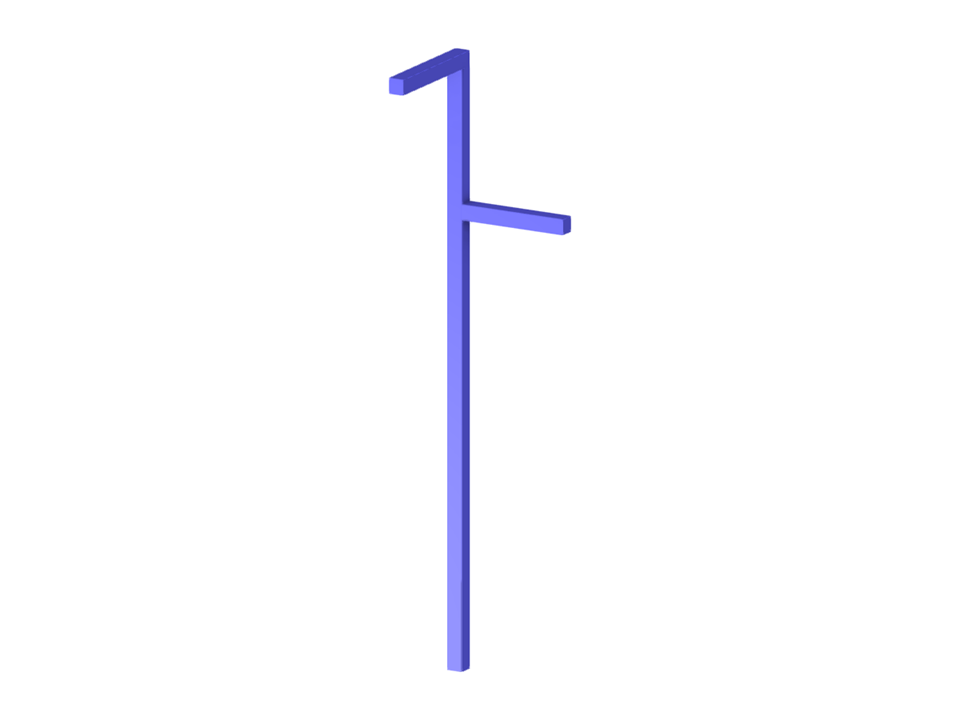

Steel Lamp Post
Model to Download
Description
Parameterization of the geometry of a steel lamp post.
Model created by the technical team of Dlubal Latam. The model is also available as a parameterized block at the Dlubal Latam site.
The file to download contains a parametrized model saved as a block (*.rf6 file type).
Keywords
Write Comment...
Write Comment...
- Views 468x
- Downloads 8x
- Updated 2 August 2023
- Block parameters editable dynamically
- Number of Nodes 58
- Number of Lines 77
- Number of Members 0
- Number of Surfaces 20
- Number of Solids 0
- Number of Load Cases 1
- Number of Load Combinations 2
- Number of Result Combinations 0
- Total Weight 1,202 t
- Dimensions 1,700 x 8,200 x 1,700 m
