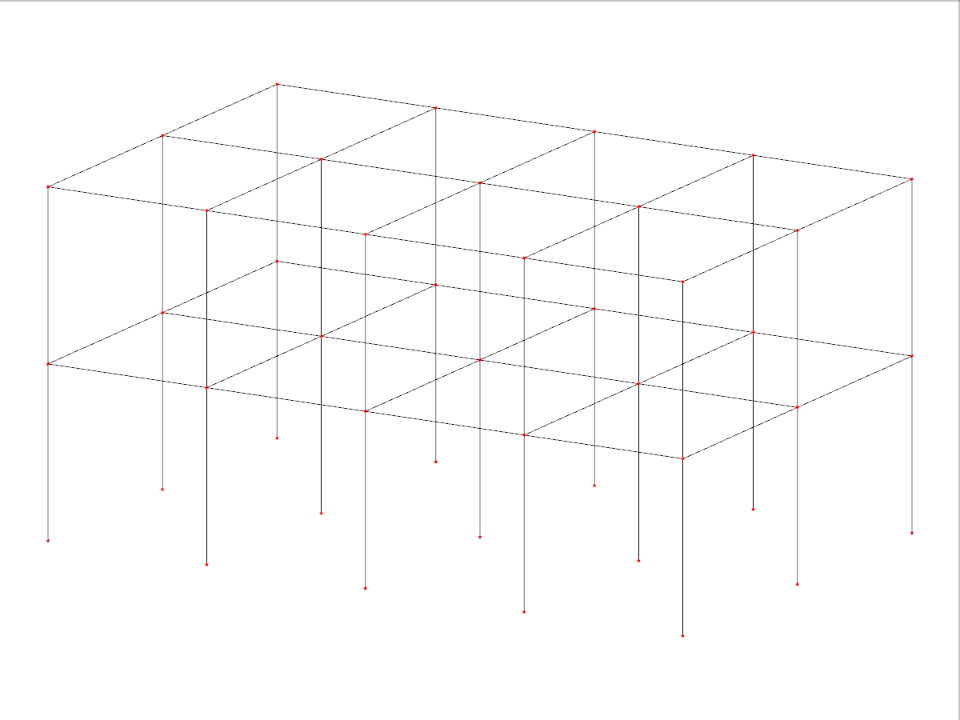

This model represents a three-dimensional grid design for a rectangular structure that accommodates variable bays and floors, making it adaptable for complex construction projects. The model is ideal for analyzing and optimizing different load scenarios and structural configurations.
3D Grid for Rectangular Structure with Variable Bays
| Block parameters editable dynamically | |
| Number of Nodes | 45 |
| Number of Lines | 74 |
| Number of Members | 0 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Dimensions (Metric) | 16.000 x 8.000 x 10.000 m |
| Dimensions (Imperial) | 52.49 x 26.25 x 32.81 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
