Online Manual RFEM | Surfaces

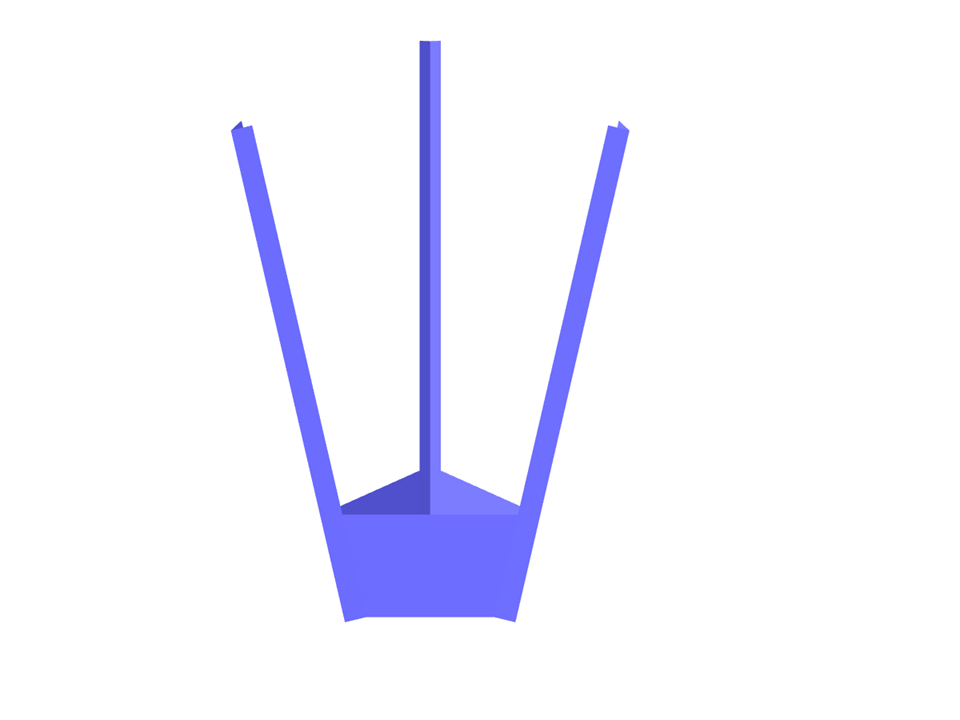

Parameterization of the geometry of a steel triangular mast swivel.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Mast Swivel
| Block parameters editable dynamically | |
| Number of Nodes | 32 |
| Number of Lines | 36 |
| Number of Members | 3 |
| Number of Surfaces | 9 |
| Total Weight | 0.160 tons |
| Dimensions | 5.16 x 5.96 x 7.95 feet |
| Program Version | 5.27.01 |
