A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website. The file to download contains a parametrized model saved as a block (*.rfs or *.rf6 file type).

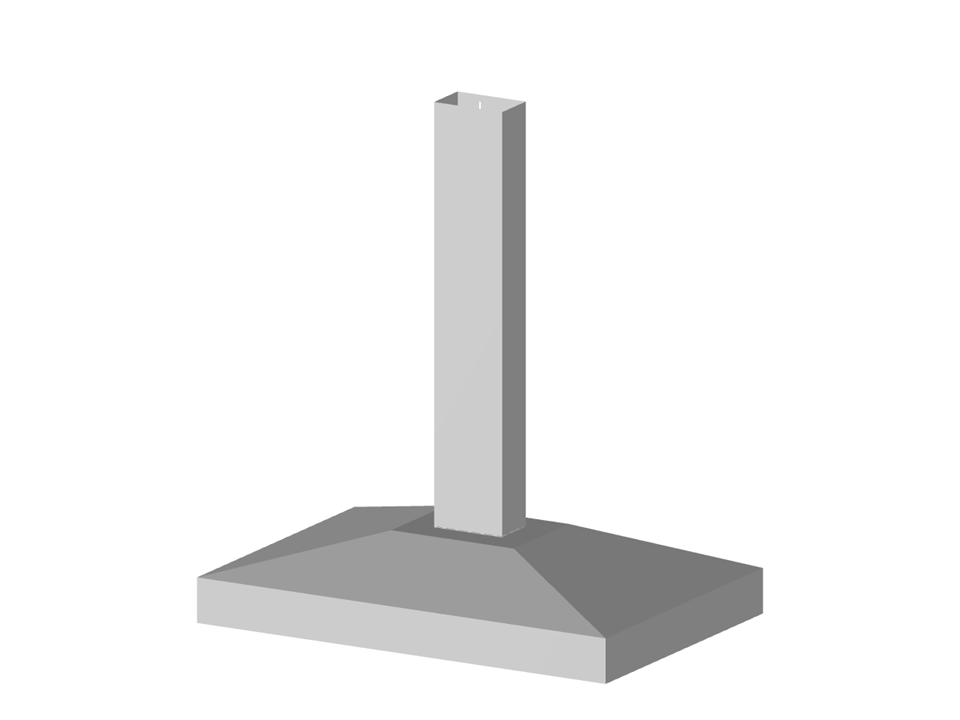

Inserted Footing
| Block parameters editable dynamically | |
| Number of Nodes | 27 |
| Number of Lines | 33 |
| Number of Members | 1 |
| Number of Surfaces | 17 |
| Number of Solids | 3 |
| Total Weight | 8.577 tons |
| Dimensions | 9.84 x 6.56 x 11.15 feet |
| Program Version | 5.18.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
