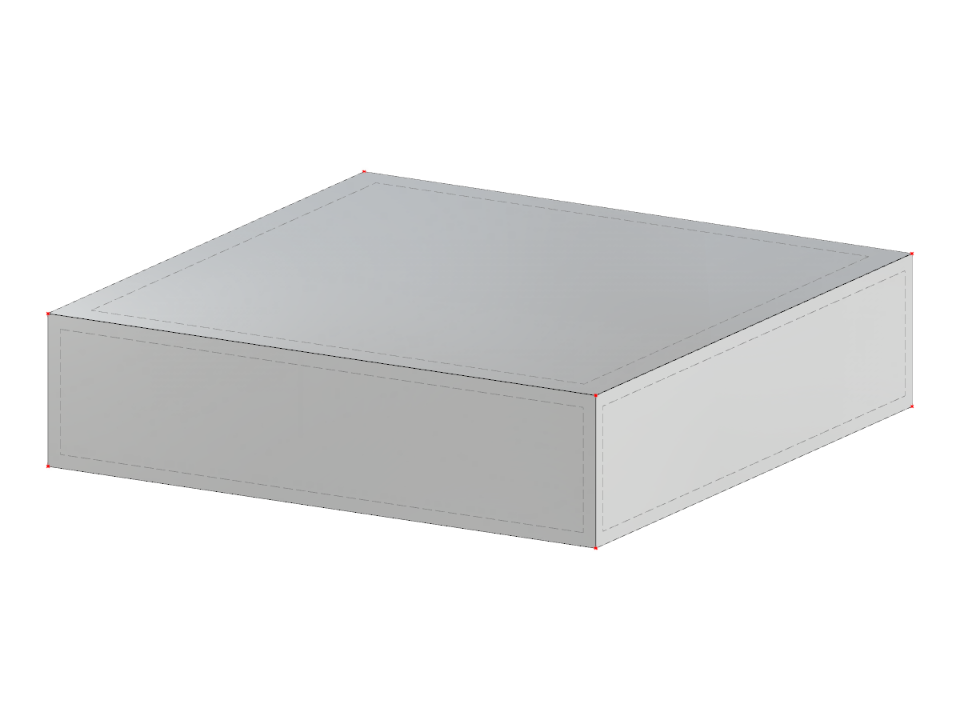

This model focuses on the design and analysis of a rectangular foundation with an eccentricity from its center. Such designs are crucial when dealing with structural loads that deviate from the central axis, affecting stability and load distribution. The model allows for exploration of the impact of eccentric loads on foundation behavior.
Rectangular Foundation with Eccentricity
| Block parameters editable dynamically | |
| Number of Nodes | 8 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 5.000 tons |
| Dimensions (Metric) | 2.000 x 0.500 x 2.000 m |
| Dimensions (Imperial) | 6.56 x 1.64 x 6.56 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
