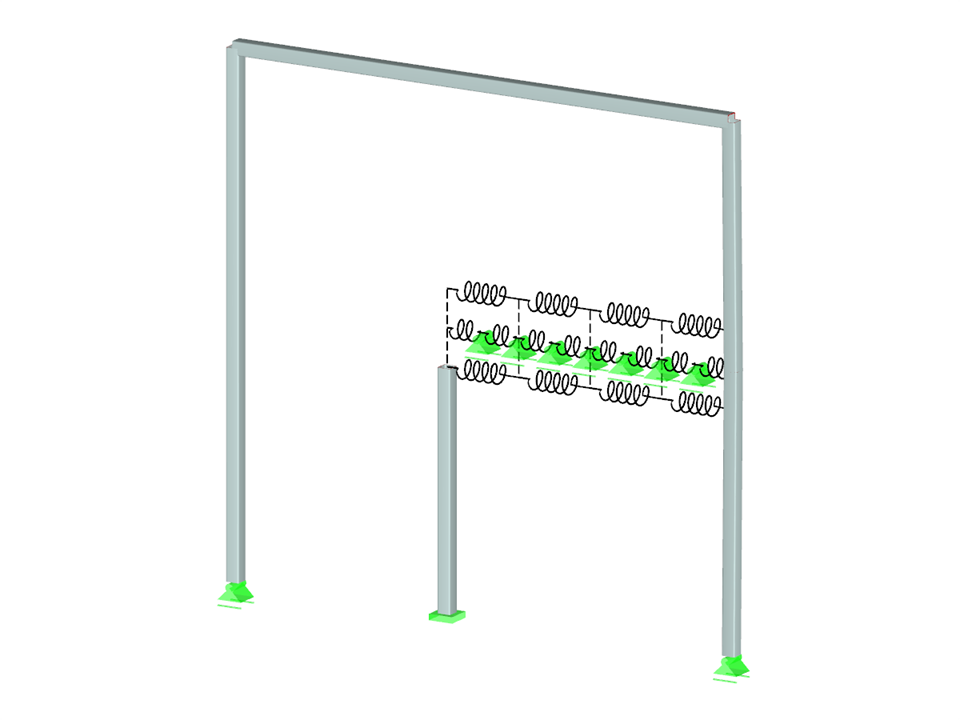

The thesis focuses on the numerical FEM modeling of a tensegrity chain frame system, using the programs RFEM 5 and RF‑DYNAM Pro by Dlubal Software. In particular, a real-world application example is analyzed where the chain is designed to inhibit signal transmission in appropriate frequency bands in order to seismically isolate an external object.
FEM Modeling of Tensegrity Chain
| Number of Nodes | 24 |
| Number of Lines | 31 |
| Number of Members | 31 |
| Number of Load Cases | 2 |
| Total Weight | 0.005 tons |
| Dimensions | 5.42 x 0.33 x 5.09 feet |
| Program Version | 5.32.02 |
