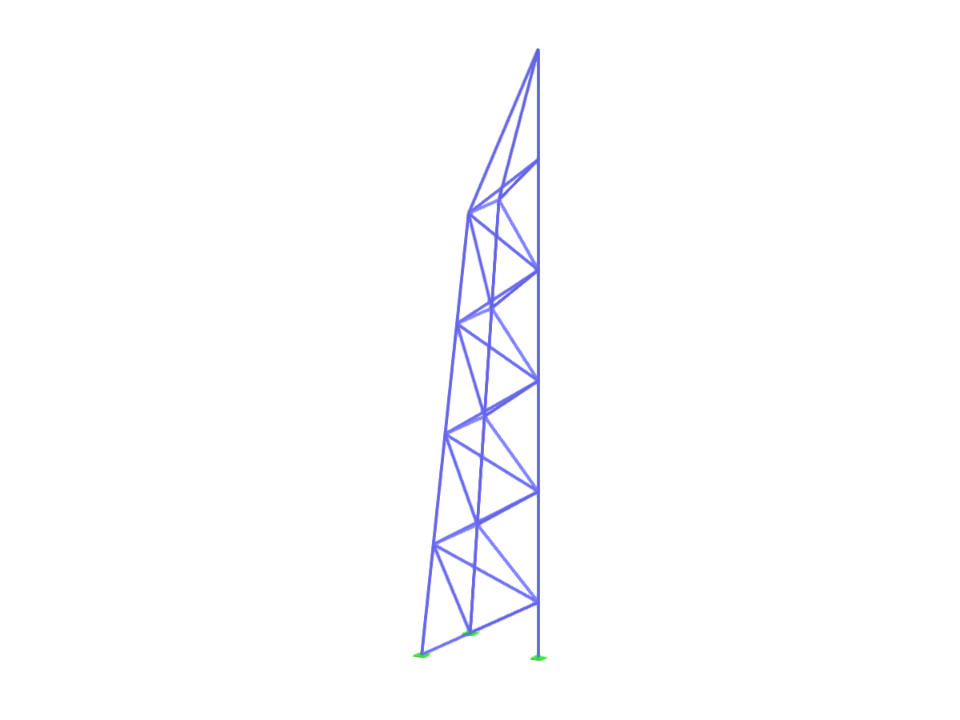

The model represents a triangular truss column, showcasing a straightforward structural analysis of a tension and compression member system. The truss configuration optimizes material usage while maintaining structural integrity. This model can be used for educational purposes or preliminary design assessments. The simplicity of the truss structure allows for easy modifications and adaptations.
Triangular Truss Column
| Block parameters editable dynamically | |
| Number of Nodes | 17 |
| Number of Lines | 42 |
| Number of Members | 42 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 2.323 tons |
| Dimensions (Metric) | 4.400 x 26.000 x 4.000 m |
| Dimensions (Imperial) | 14.44 x 85.3 x 13.12 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
