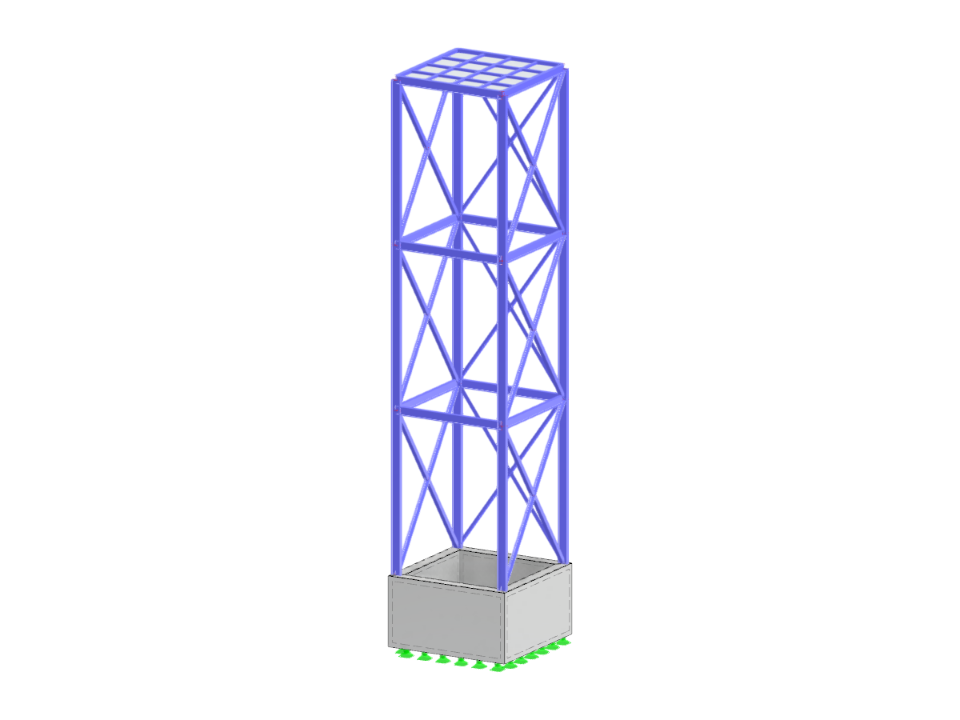

This model demonstrates the structural analysis of a lift shaft designed without a machine room. It focuses on optimizing space and efficiency within the building's vertical transportation systems. The configuration enhances installation by integrating seamless architectural and engineering elements. The model serves as a practical example for urban buildings where space is a critical factor.
Lift Shaft Without Machine Room
| Block parameters editable dynamically | |
| Number of Nodes | 53 |
| Number of Lines | 94 |
| Number of Members | 66 |
| Number of Surfaces | 15 |
| Number of Solids | 1 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 16.911 tons |
| Dimensions (Metric) | 2.750 x 12.000 x 2.750 m |
| Dimensions (Imperial) | 9.02 x 39.37 x 9.02 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
