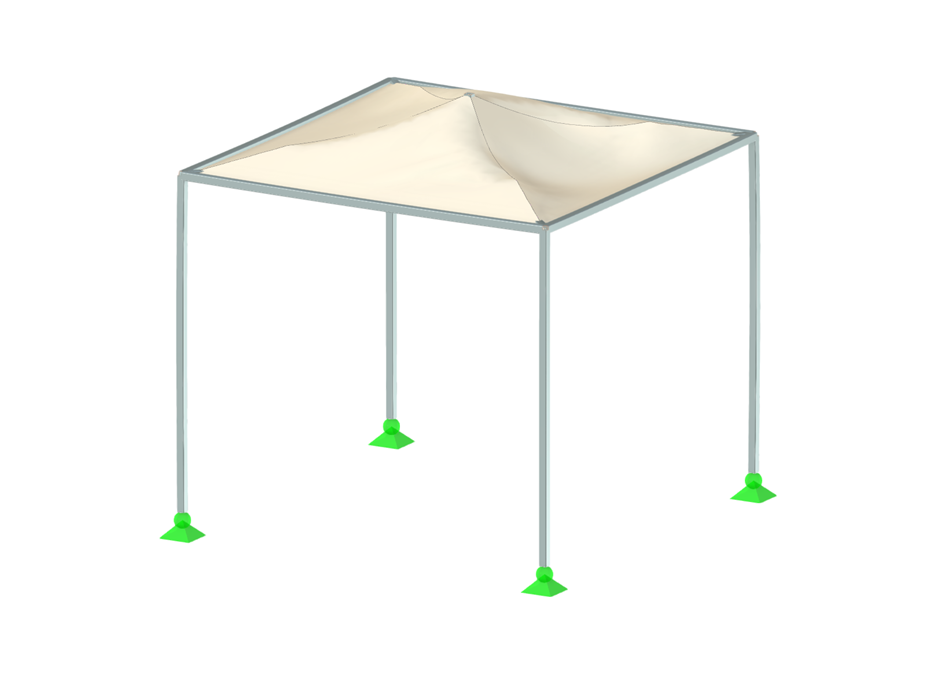

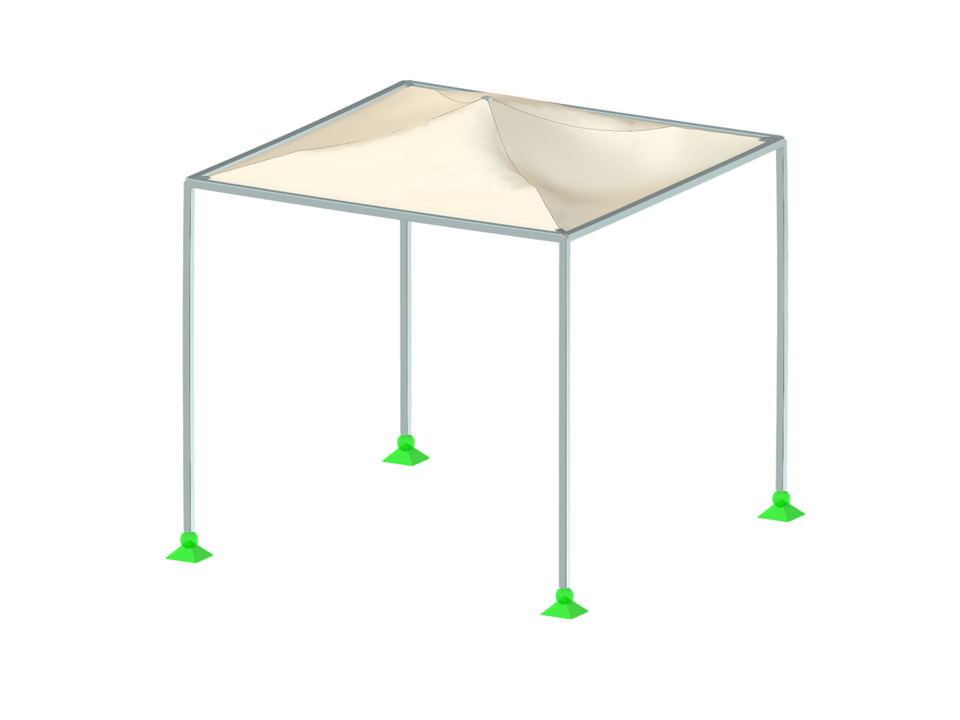

Steel pavilion with a membrane roof
Gazebo
| Number of Nodes | 42 |
| Number of Lines | 65 |
| Number of Members | 57 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 0.073 tons |
| Dimensions | 9.84 x 9.84 x 9.84 feet |
