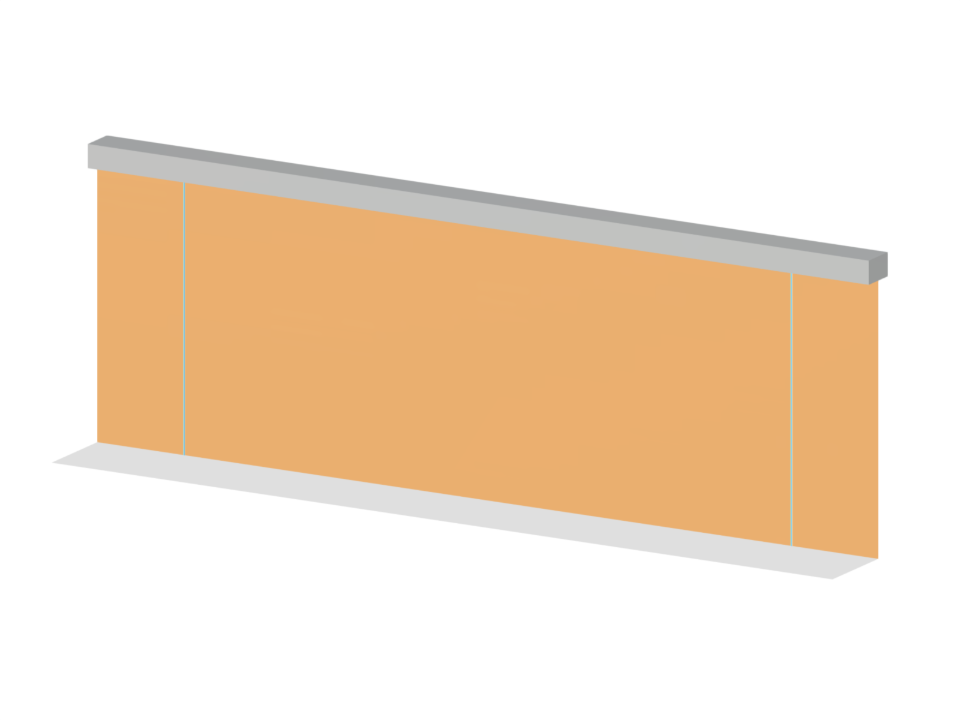

Masonry Wall with Beam

Number of Nodes 12
Number of Lines 16
Number of Members 6
Number of Surfaces 2
Number of Solids 0
Number of Load Cases 2
Number of Load Combinations 7
Number of Result Combinations 0
Total Weight 14.930 tons
Dimensions 29.53 x 9.84 x 3 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
