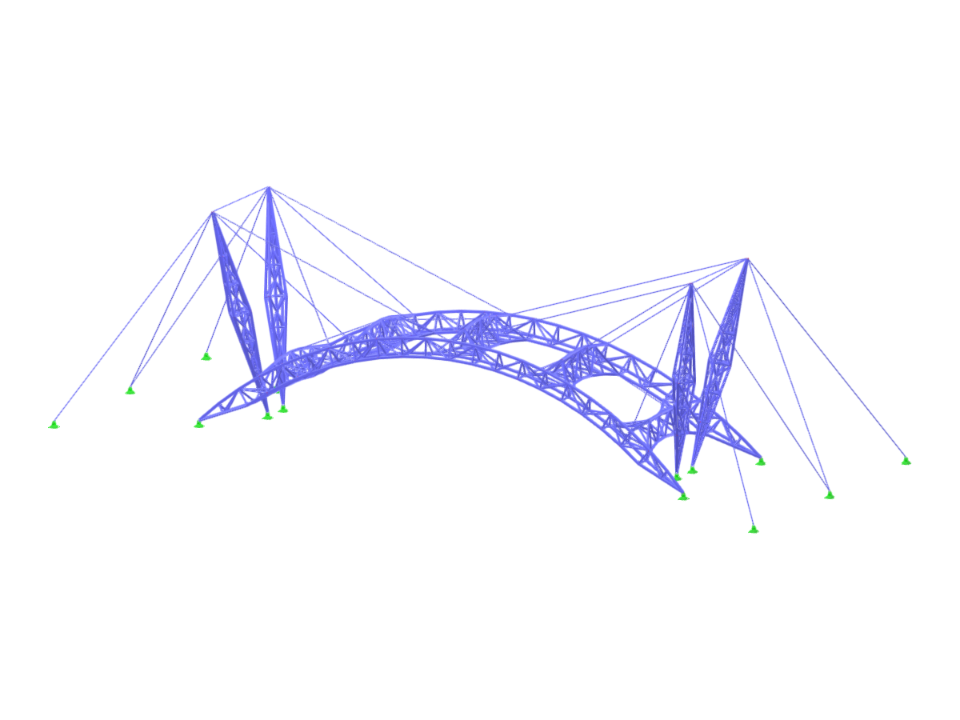

This model represents the Xi'an-Xixian North Ring Expressway Dawang Ramp Toll Station in China. It features a parametric design with the toll station supported on arched trusses. The structure showcases advanced engineering techniques for optimizing the geometry and load distribution. Arched trusses provide architectural elegance while ensuring structural integrity.
Xi'an-Xixian Expressway Toll Station
| Block parameters editable dynamically | |
| Number of Nodes | 383 |
| Number of Lines | 1219 |
| Number of Members | 1219 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 289.068 tons |
| Dimensions (Metric) | 130.000 x 34.000 x 49.000 m |
| Dimensions (Imperial) | 426.51 x 111.55 x 160.76 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
